Product Overview
Description
Glass Deep Processing Beveling Machine in China Price Glass Beads For glass Making
Characteristics:

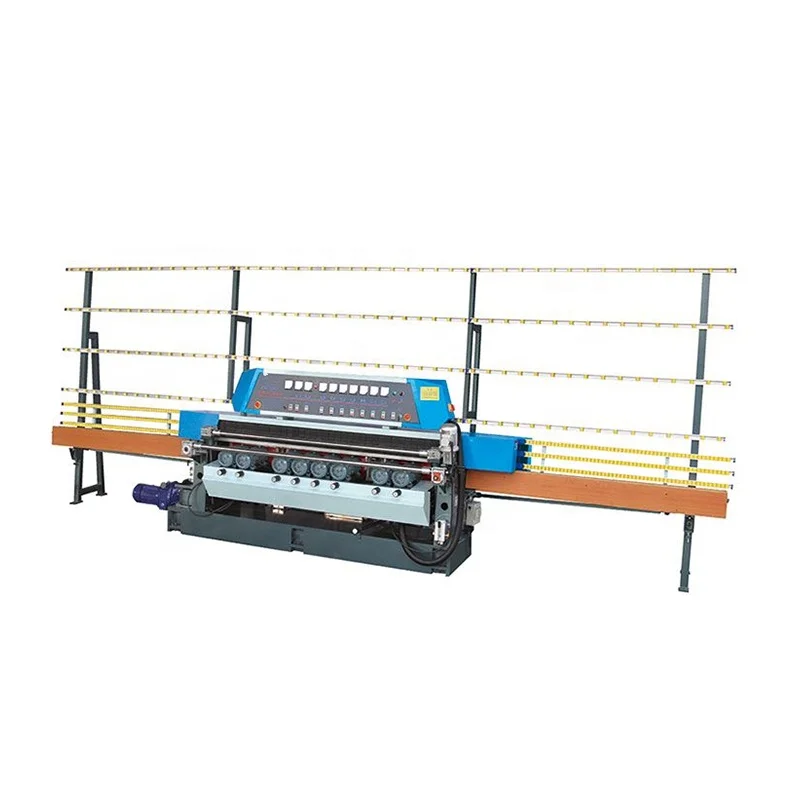

This glass beveling machine is a nine-head bevel and bottom grinding machine, it can complete rough grinding and fine grinding in one time, the polished effect is similar to a mirror surface, with accurate ground angles. Control system uses PLC control, automatic, manual conversion. Man-machine interface clearly shows that the glass thickness, width and angle of hypotenuse, and the remaining glass thickness and various parameters, such as processing speeds, transmission speed using variable frequency adjustment.
Chain plates are made of thicker steel plates and the slide gibs are made with a number of special processing techniques with such features as superior abrasion resistance, deformation resistance, and stable operation etc. The motor of the machine has a solid body, high precision, low-power consumption, suitable for beveling and milling processing of large quantities of glass parts.
Advantage:
1,Base,Beam,Swing frame,upright all is used by high-quality castings, strong and stable body.
2,ABB international brands grinding motor, 2.2 KW wide range stepless speed changer, frequency adjustment.
3,The front and rear delivery pad is used 40cr steel and 55-degree high-frequency hardening to its degree of hard wear.
4,Specially design for small briquette in front delivery pad, when you large quantities to process mosaic glass,even the delivery pad is wear, it don’t need to change the whole delivery pad, only change the small briquette is ok; that you can save a lot of cost.
5,Aluminum scaffolding, timing belt transmission.
6,stainless steel water tank,there are two oil pump in both side to supply the lubrication for delivery pad pallet and so on activities parts.
7,Electrical appliances used the Tengen or DELIXI brand and so on high-quality product.
8,Rough grinding wheel, finish grinding wheel, polishing wheel: it all useChinahigh-quality wheel andItalywheel
9,Full-automatic control, it is suitable for max bevel width market.
10,Glass Beveling machine can accord customer requirement to design.
This glass beveling machine is a nine-head bevel and bottom grinding machine, it can complete rough grinding and fine grinding in one time, the polished effect is similar to a mirror surface, with accurate ground angles. Control system uses PLC control, automatic, manual conversion. Man-machine interface clearly shows that the glass thickness, width and angle of hypotenuse, and the remaining glass thickness and various parameters, such as processing speeds, transmission speed using variable frequency adjustment.
Chain plates are made of thicker steel plates and the slide gibs are made with a number of special processing techniques with such features as superior abrasion resistance, deformation resistance, and stable operation etc. The motor of the machine has a solid body, high precision, low-power consumption, suitable for beveling and milling processing of large quantities of glass parts.
Advantage:
1,Base,Beam,Swing frame,upright all is used by high-quality castings, strong and stable body.
2,ABB international brands grinding motor, 2.2 KW wide range stepless speed changer, frequency adjustment.
3,The front and rear delivery pad is used 40cr steel and 55-degree high-frequency hardening to its degree of hard wear.
4,Specially design for small briquette in front delivery pad, when you large quantities to process mosaic glass,even the delivery pad is wear, it don’t need to change the whole delivery pad, only change the small briquette is ok; that you can save a lot of cost.
5,Aluminum scaffolding, timing belt transmission.
6,stainless steel water tank,there are two oil pump in both side to supply the lubrication for delivery pad pallet and so on activities parts.
7,Electrical appliances used the Tengen or DELIXI brand and so on high-quality product.
8,Rough grinding wheel, finish grinding wheel, polishing wheel: it all useChinahigh-quality wheel andItalywheel
9,Full-automatic control, it is suitable for max bevel width market.
10,Glass Beveling machine can accord customer requirement to design.
Technical Parameter
| Minimun glass size | 50*50mm |
| Glass beveling width | 0-26mm |
| Beveling degree | 3-30 degree |
| Beveling speed | 1-6mmin |
| Glass thickness | 3-19mm |
| Power | 21kw |
| Overall dimension | 6800*1200*2500mm |
| Weight | 4000kg |
TRUETEC INTERNATIONAL produce high quality machines, also pay attention to package.
The machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.
12month warranty
1%-2% spare parts
OEM&ODM are welcom
Tried orders are available
Before sale
Free contact for the most suitable machine Free professional design for each customer especially.
After sale
24 hours technical support by phone, email or skype (email or skype or whatapp ) . 18mouths warranty period Free traning and friendly
English verson manual and operation video CD disk.
Payment termes
L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
TRUETEC INTERNATIONAL always looking for long term cooperaion, not one time deal.
1. Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.
3.Question:if our price is higher than another company or factories ?
Answer: please check, what is is the different of the machine of parts ,service and guarantee,especially the machine inner electric parts, sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.ating glass machine Vertical Automatic Insulating Glass Machine Production Line glass machine production lineouble glazing machine/ Insulating double glass machine/ double glazing glass machine
