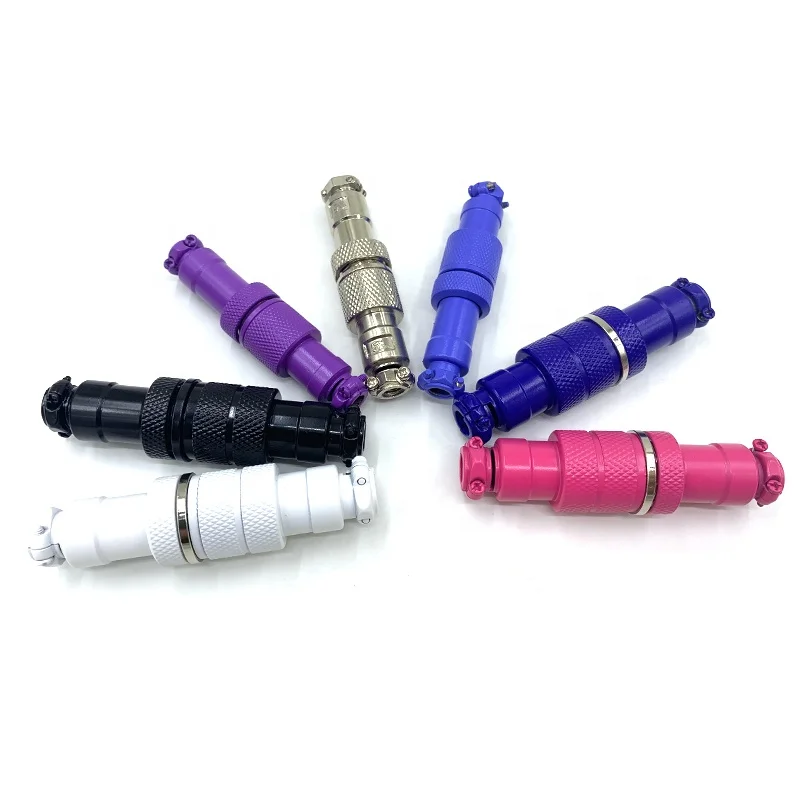

GX series connectors known as aviation connector, are now widely used in aviation, navigation, date acquisition systems, Inclinometer, computer automation measurement and control systems,mechnical equipment, audio&video, communications, automotive and other industries.
Coupling: Threaded coupling
Shell material: Zinc alloy with nikelplate
Insert material: Bakelite
Contact material: Copper (silverplated/gold)
Mating cycle: 500 times pull and push
Temperature range: -20℃~ +85℃
Cable diameter: 7.55mm~8.55mm
Pin number: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 pin
|Operation limit voltage(AC.V.rms)||200||200||200||200||200||200||200||200||200|
|Withstanding voltage(AC.V.rms) I minute||1500||1500||1500||1500||1500||1500||1500||1500||1500|
|Insulation resistance(MΩ MIN.) at DC 500V||1500||1500||1500||1500||1500||1500||1500||1500||1500|
|Contact resistance (MΩ MAX.) AT DC 1A||5||5||5||5||5||5||5||5||5|
|Solder cup mouth aperture||1.6||1.6||1.6||1.2||0.9||0.9||0.9||0.9||0.9|
|Solder inter diameter||2.45||2.45||2.45||2||1.15||1.15||1.15||1.15||1.15|
Packaging Details: GX12 gx16 connector will be packed in one small bag and then put in one box. If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
We supply GX series connectors, heavy duty connectors and mil connectors and other many kinds of connectors. If you need cable harness, we also can supply harness processing, you just need let us know the spec of the cable and the connectors, we will give you a cable harness drawing.
Q1.Are you a manufacturer?
A1: Yes, we are a experienced manufacturer with our own molds and production lines.
Q2.How about quality of products?
A2: Our technicians and QC teams test the products one by one using specail device and instruments.
Q3.How about price?
A3: We are a manufacturer and always offer our customers the most competitive factory price.
Q4.How to play an order?
A4: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.
Q5.May I buy samples from you?
A5: Yes! You are welcome to place sample order to test our superior quality and services.
Q6.Can I visit your factory?
A6: Yes, welcome to our factory.
Q7.How can I make OEM or ODM orders?
A7: We have different print processing,different OEM orders please contact again or view more items on our alibaba page.
Q8.How do you ship the finished product?
A8: Based on the customer request, we can ship by customer's international express account like DHL,TNT,UPS,FEDEX or by our forwarder shipping.
