woodworking machinery sanding machines 43 inch single head wide belt sander sanding machine for woodworking

woodworking machinery sanding machines 43 inch single head wide belt sander sanding machine for woodworking

Category: Other Woodworking Machinery >>>
Seller: Qingdao,Giantway,Machinery,Co.,Ltd.

Price in USD:

Price:

Quantity:

add to wishlist

Product Overview

Description

SGJ1100RPA

15 .jpg

Support Block

Support Block is with micro adjustable height, which is helpful to adjust the sanding roller parallel.

16 .jpg

Double Press Rollers

Double Press Rollers, effectively hold the working pieces.

21 _.jpg

Conveyor Bed

Feed table is built in steel with tolerance of planarity within 0.03mm; table surface fine-grinded to avoid wear of the internal side of the feed belt; the steel table is through heat treatment.

22 .jpg

Dynamic Balance Detection

All working rollers must be checked by dynamic balance detector.

23 _.jpg

Machine Frame

Machine Frame is after heat treatment, welded by robot and processed by CNC equipment.

Machine Specifications:

MODEL / PC / ITEM	HEAVY DUAY TYPE	STANDARD TYPE
Contact roller diameter	240mm	240mm
Calibrating roller diameter	210mm	210mm
Working width	40-1300mm	40-1300mm
Working thichness	2.5-150mm	2.5-150mm
Feeding speed	0-19m/min	0-19m/min
First belt speed	24m/s	24m/s
Second belt speed	18m/s	18m/s
Sanding belt size	1330*2200mm	1330*2200mm
Total power	62.62kw	40.62kw
First belt motor	37kw	22kw
Second belt motor	22kw	15kw
Motors position	Outside	Inside
Feeding motor	3kw(inverter)	3kw (inverter)
Lift & decline motor	0.37kw	0.37kw
Brush motor	0.25kw	0.25kw
Working pressure	0.4-0.8Mpa	0.4-0.8Mpa
Compressed air consumption	1 CBM/min	1 CBM/min
Overall dimension	230026502120mm	230020002120mm
Weight	3850kgs	3600kgs

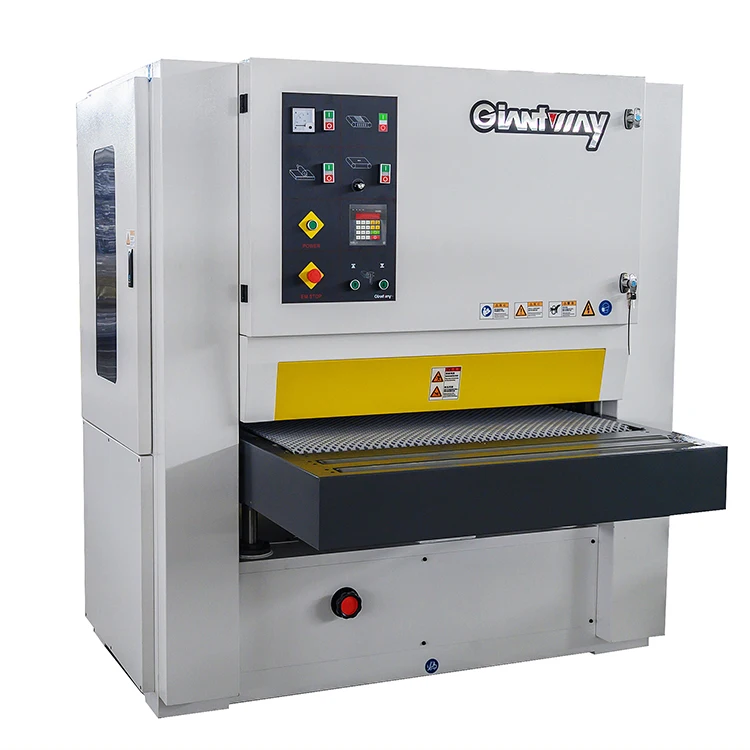

Product introduction: Wide Belt Sander

This wide belt sander SGJ1300R-RPA has 25 years production experience, it is our most mature product. We install two working units on this machine. The first working unit is a steel roller, diameter 240mm; the second working unit is a combination of roller (diameter 210mm) and pad. This configuration is good for calibrating and fine sanding.

Giantway uses cnc laser cutting machine to cut steel boards, and uses robot to weld the machine frame, then use cnc machining center to process the surface and holes. So the machine frame is with high precision, after that, we assembe dynamically balanced rollers on this machine and other good quality parts, all of these to ensure the entire machine has high precision and long term reliability.
