Product Description

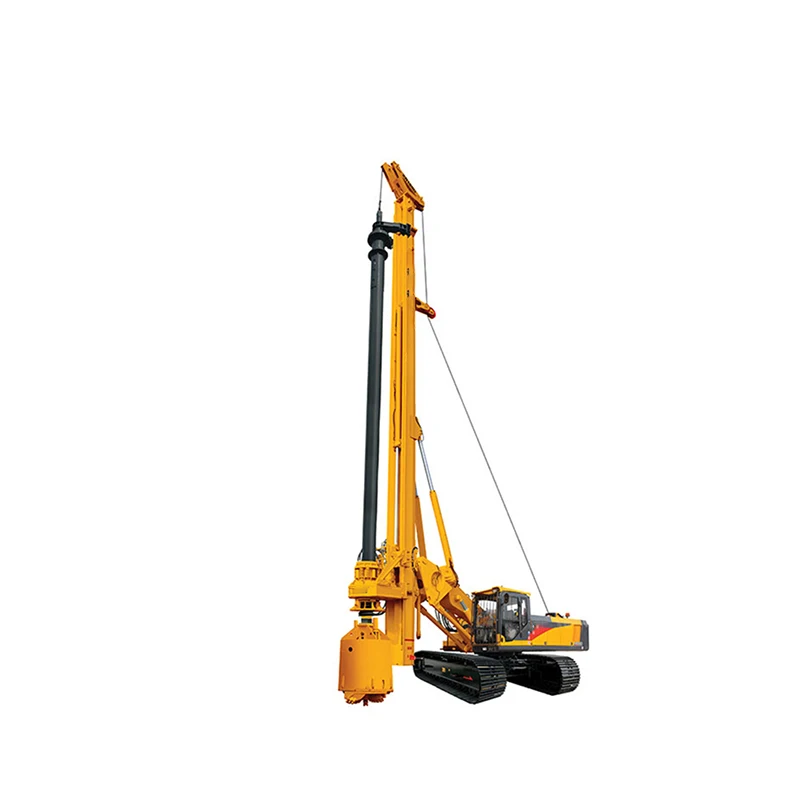

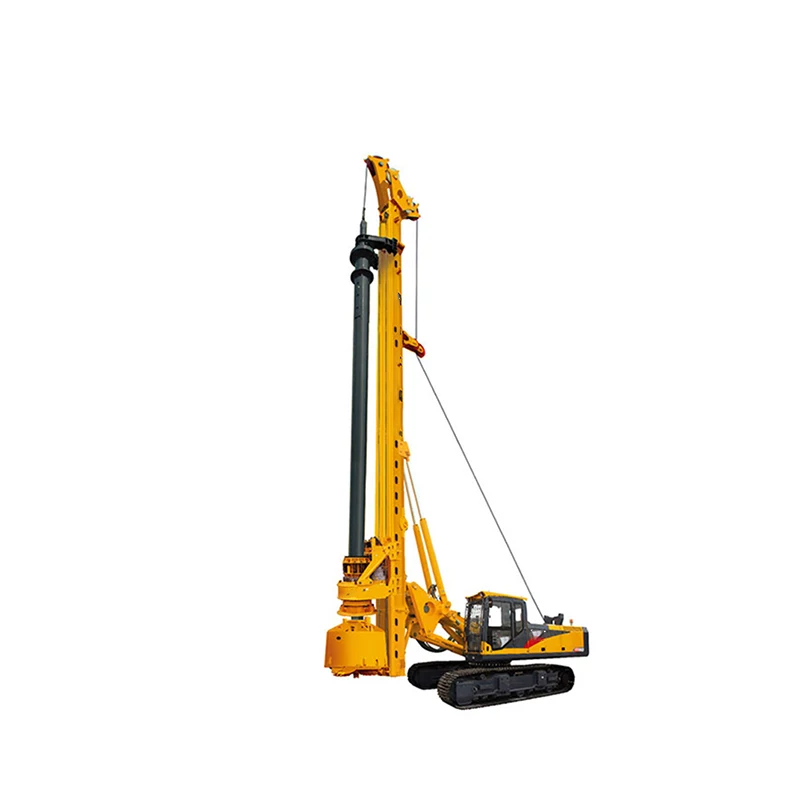

Chinese Rotary Drilling Rig XR180D





Overall working weight:58000kg


Max. drilling diameter: 1800mm


Max. drilling depth: 46m


Rated power: 194kW





1.Introduction:


XR180D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.


1. Hydraulic telescopic (TDP series) track chassis and large diameter of slewing bearing which is special for rotary drilling rig is used, and meets super strong stability and convenience of transportation.

2. The original imported electronic-controlled turbocharged engine is used with strong power, and the emission meets North America Tier 4 Final, Europe stage5 emission standard.

3. German hydraulic system is used, and for which the positive flow control, load sensing control and power limit control is used to make the hydraulic system more energy efficient.

4. Single row of rope and master winch is used to solve effectively the wear issue of steel wire rope and increase effectively the service life of steel wire rope; and the master winch is provided with drilling depth detector, and the single row of rope makes the depth detection more accurate.

5. Anti-noise cab with FOPS function, adjustable seat, air conditioner, interior and exterior lights, windshield wiper with water spray function. Control console with various instruments and handles, color LCD with powerful function.




2.Product Parameters:

























































































































Description


Unit


Parameter value


Max. drilling diameter


mm


1800


Max. drilling depth


m


standard configuration


(5-section friction Kelly bar)46


optional configuration


(4-section-locking Kelly bar)


Allowable luffing scope (from center of drill rod to slewing center)


mm


3560~3900


Engine


Model


QSB6.7


Rated power/speed


kW


194/(2200r/min)


Max. working pressure of hydraulic system


MPa


35


Rotary drive


Max. torque


kN.m


180


Rotational speed


r/min


7~27


Crowd cylinder


Max. Pushing force


kN


160


Max. Pulling force


kN


180


Max. stroke


mm


5000


Main winch


Max. pulling force


kN


180


Max. single-rope speed


m/min


65


Diameter of the steel wire rope


mm


180


Auxiliary winch


Max. pulling force


kN


50


Max. single-rope speed


m/min


70


Diameter of the steel wire rope


mm


16


Traveling


Max. traveling speed of the overall unit


km/h


1.5


Max. climbable gradient of the overall unit


%


35
