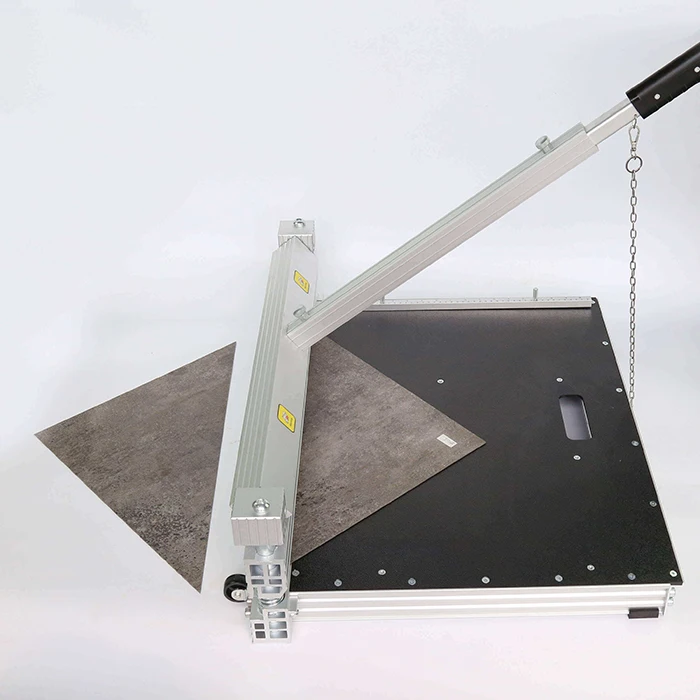

Everjade Cutting Blades Vinyl Cutting Machine Vinyl Cutter Carpet Cutter
- Category: >>>
- Seller: Beijing,Bcd,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Blade cutting length | 24 cm | |
Width of cutting material | 24 cm | |
Angle cutting | 0-45 degrees | |
Maximum cutting thickness | 12 mm | |
Specification | EP240,EP340,EP640,UP240,UP340,UP640,MP230,MP330,ES240 | |
Customization | YES | |
Applicable floor type | Composite floor, Engineered wood floor, Laminate floor, Bamboo floor, Plastic floor, Rubber, PVC floor, etc. | |
Show Details
More Types
Cutting Method Display
Finished Product Display
Everjade Professional Hand Held Siding Cutter Tool Cortador De Piso Plastic Garage Tile Lvt Spvc Pvc Vinyl Laminate Floor Cutter
Installation Steps
Installation of the cutter(1)
Install the table to the cutter
base with provided screws and
bolts as shown.
Warning: Do not put your
fingers against the sharp
base with provided screws and
bolts as shown.
Warning: Do not put your
fingers against the sharp
Installation of the cutter (2)
Pull up the lock pin on the
aluminum handle as show and
insert the handle base into the
handle as show.
aluminum handle as show and
insert the handle base into the
handle as show.
Cutting Preparation
Adjust the angle attachment to
desired angle as needed.
The angle attachment can be
used on left side of the table as
shown.
desired angle as needed.
The angle attachment can be
used on left side of the table as
shown.
Straight Cutting
Insert material between the
cutting blade and the base,
flush with the angle attachment
as shown and hold the material
with foot then push handle
down to complete a cut..
cutting blade and the base,
flush with the angle attachment
as shown and hold the material
with foot then push handle
down to complete a cut..
45° Cutting
Swing the angle attachment to
45°. Insert material between the
cutting blade and the base,
against the angle attachment as
shown, then push the handle
down to complete a cut.
45°. Insert material between the
cutting blade and the base,
against the angle attachment as
shown, then push the handle
down to complete a cut.
Changing the Blade
Use the provided Allan wrench to
remove the five screws, then hold
the blade by each end and
carefully move the blade out of
blade holder.
remove the five screws, then hold
the blade by each end and
carefully move the blade out of
blade holder.
Packaging Display
Company Profile
We are a high-standard modern enterprise specializing in the production and sales of different styles of floor cutter. Floor cutter is mainly used for: Laminate flooring, Vinyl flooring, Rubber flooring, WPC flooring, Spc flooring, Lvt flooring, leather and more. The factory has the most advanced equipment, fully automatic wall panel production line and a strong R&D department. The daily output reaches 860,000 square meters per day. From the production model to the final product, the R&D and quality control departments use strict inspection systems. All products follow the international quality management and assurance system, and have passed ISO9001:2015. Provide customers with fast delivery at the most competitive price. It provides tailor-made services and can bring designs that customers need. Years of experience provides cutting-edge information and resources in the building materials industry. More and more professionals join the EVERJADE Group. It is still expanding and launching more product lines to meet customer needs. EVERJADE Group is willing to provide you with the best service. Welcome to meet you.
Our Quality
Our principle is quality first, free samples are available for your evaluation. In the production process, every step is strictly controlled by the QC team.
Our Services
① Provide free samples. You can select samples directly from our inventory, or we can make samples according to your desired color design.
② We can print the packing box according to your requirements. If you need, we can send popular designs for your reference.
③ We can design and provide sample books to help your promotion. We believe that if you sell well, then we also sell well.
④ We also provide supporting profiles such as skirting, EVA sheet or cork, and we promise to provide you with one-stop service.
② We can print the packing box according to your requirements. If you need, we can send popular designs for your reference.
③ We can design and provide sample books to help your promotion. We believe that if you sell well, then we also sell well.
④ We also provide supporting profiles such as skirting, EVA sheet or cork, and we promise to provide you with one-stop service.
Laminate PVC Vinyl Flooring Cutter / Floor Tools
Any question, pls feel free to contact us directly!
