PUR MDF PVC Edge banding machine price automatic wood edge banding machine for sale
- Category: Other Woodworking Machinery >>>
- Seller: Jinan,JCUT,CNC,Equipment,Co.,Ltd.
Share on:

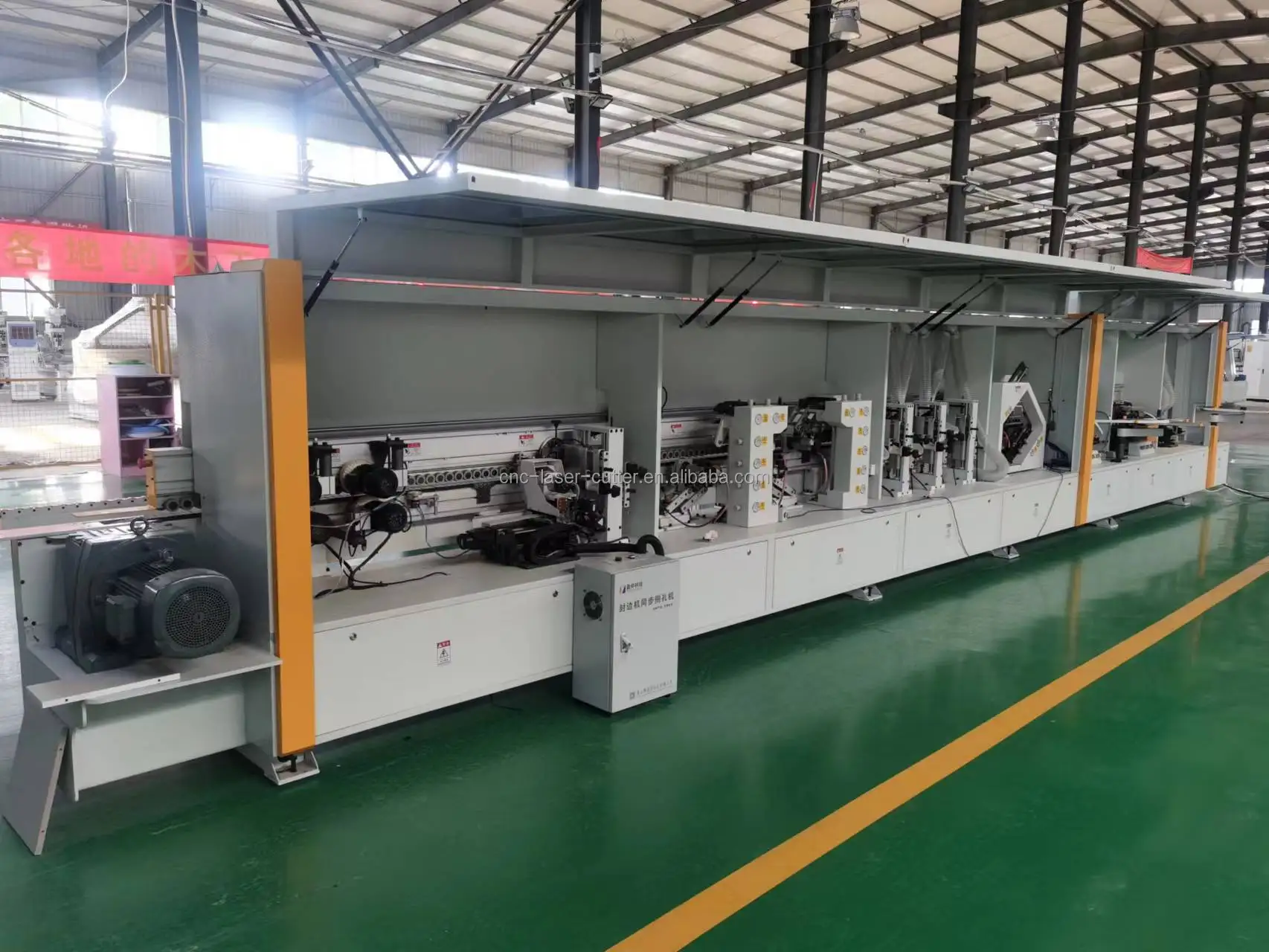

Product Overview
Description

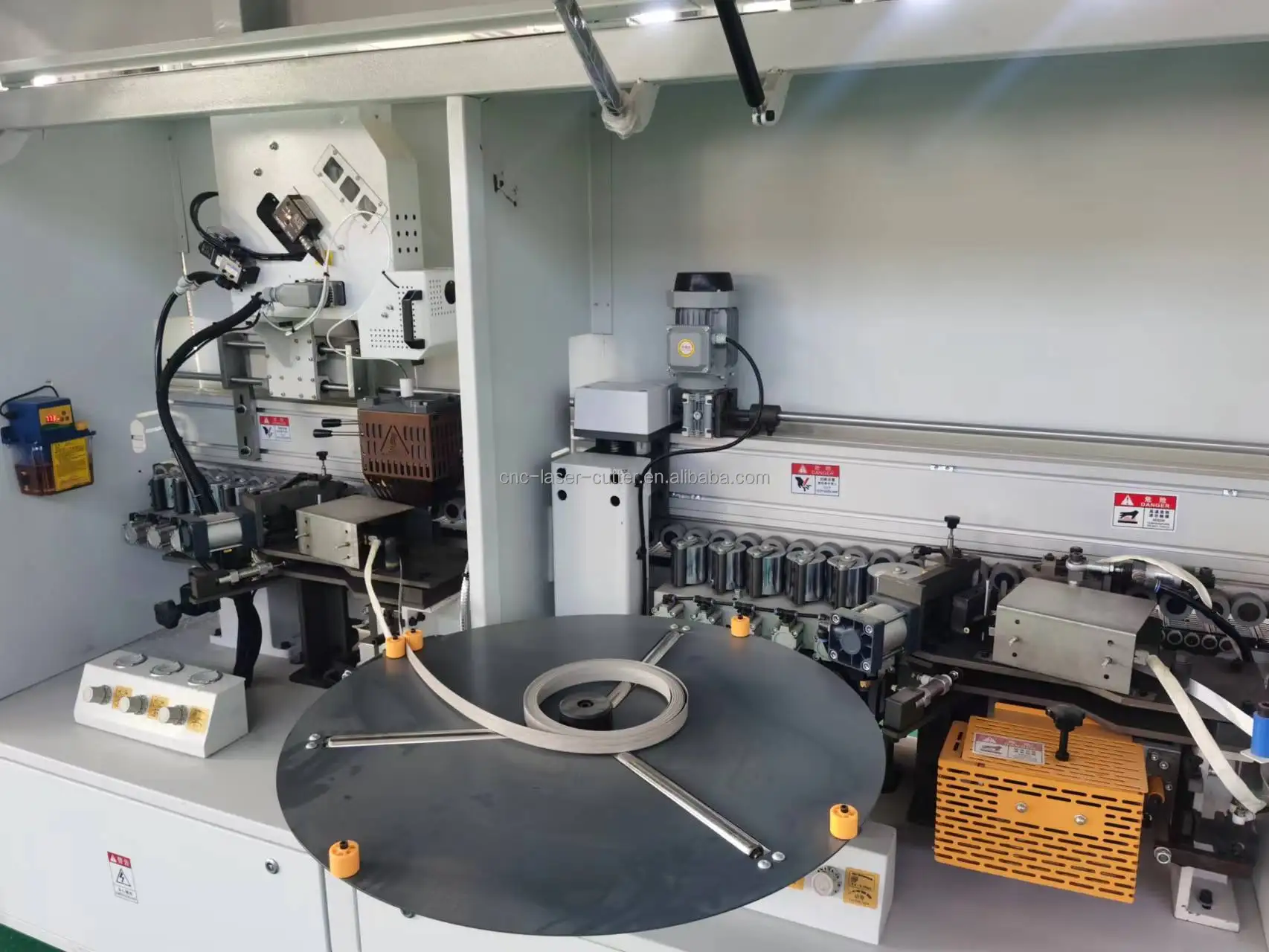

PUR MDF PVC Edge banding machine price automatic wood edge banding machine for sale
Applicable to more than 1000 kinds of materials for sheet edge banding, equipped with intelligent touch screen system,
pre-milling, glued welt, front and rear alignment, rough trimming, fine trimming 1, fine trimming 2, tracking, scraping, polishing
functions, to meet the basic requirements of all wood panels Edge sealing requirements.
1. Rough repair and fine repair can improve the service life of the tool.
2. Electric lifting and lowering of the pressure beam: high degree of automation.
3. The plate with a minimum width of 95mm can be sealed, and the traditional manual narrow edge sealing mode can be achieved
accurately, perfectly and efficiently.
4. The upper and lower double glue pots support PUR sol, which can quickly switch between dark and light color glue without downtime.

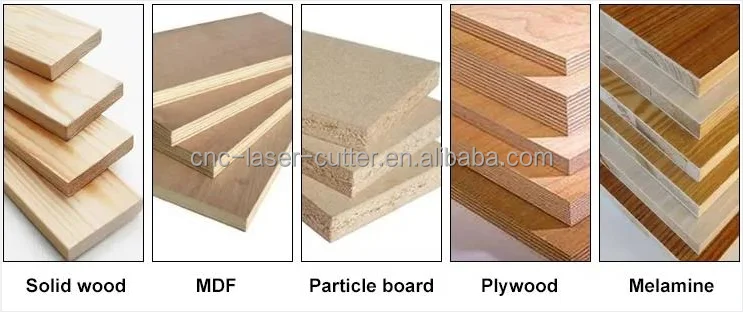

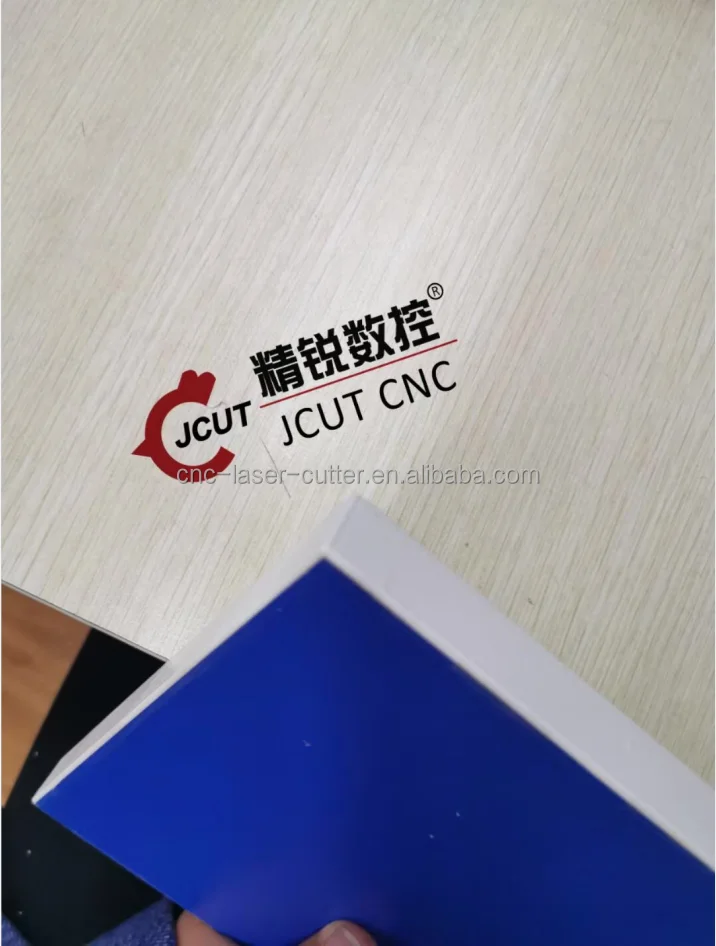

Applications:
Product Details:

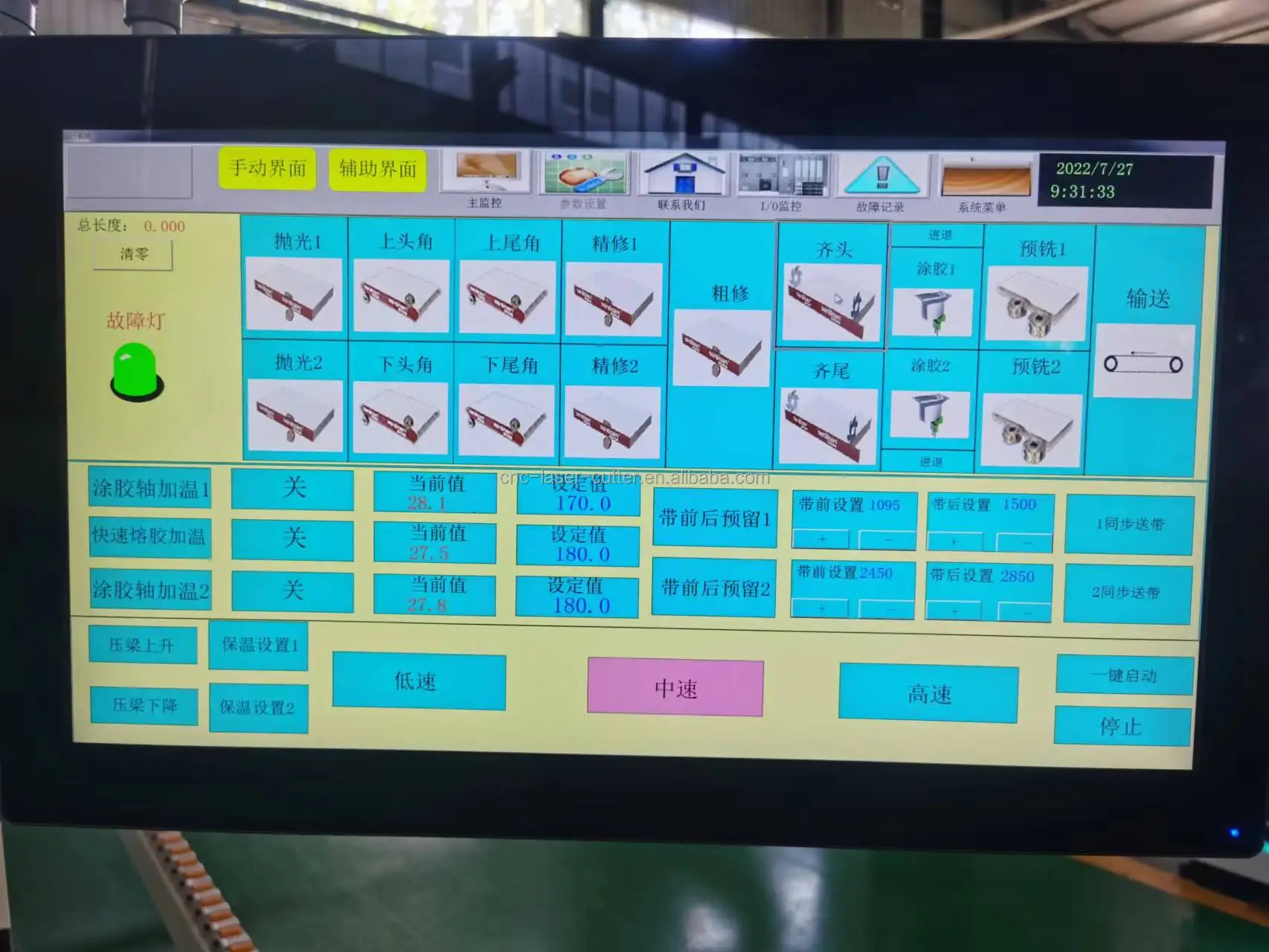

LED touch screen:
Fully automatic Shihlin control system + encoder control conveyor belt + 21-inch color touch screen
Pre Milling
Pre-milling mechanism Two 3.7kW high-speed motors, maximum pre-milling height
40mm (optional 65mm), milled flat surface corrugated, expanded material.
40mm (optional 65mm), milled flat surface corrugated, expanded material.

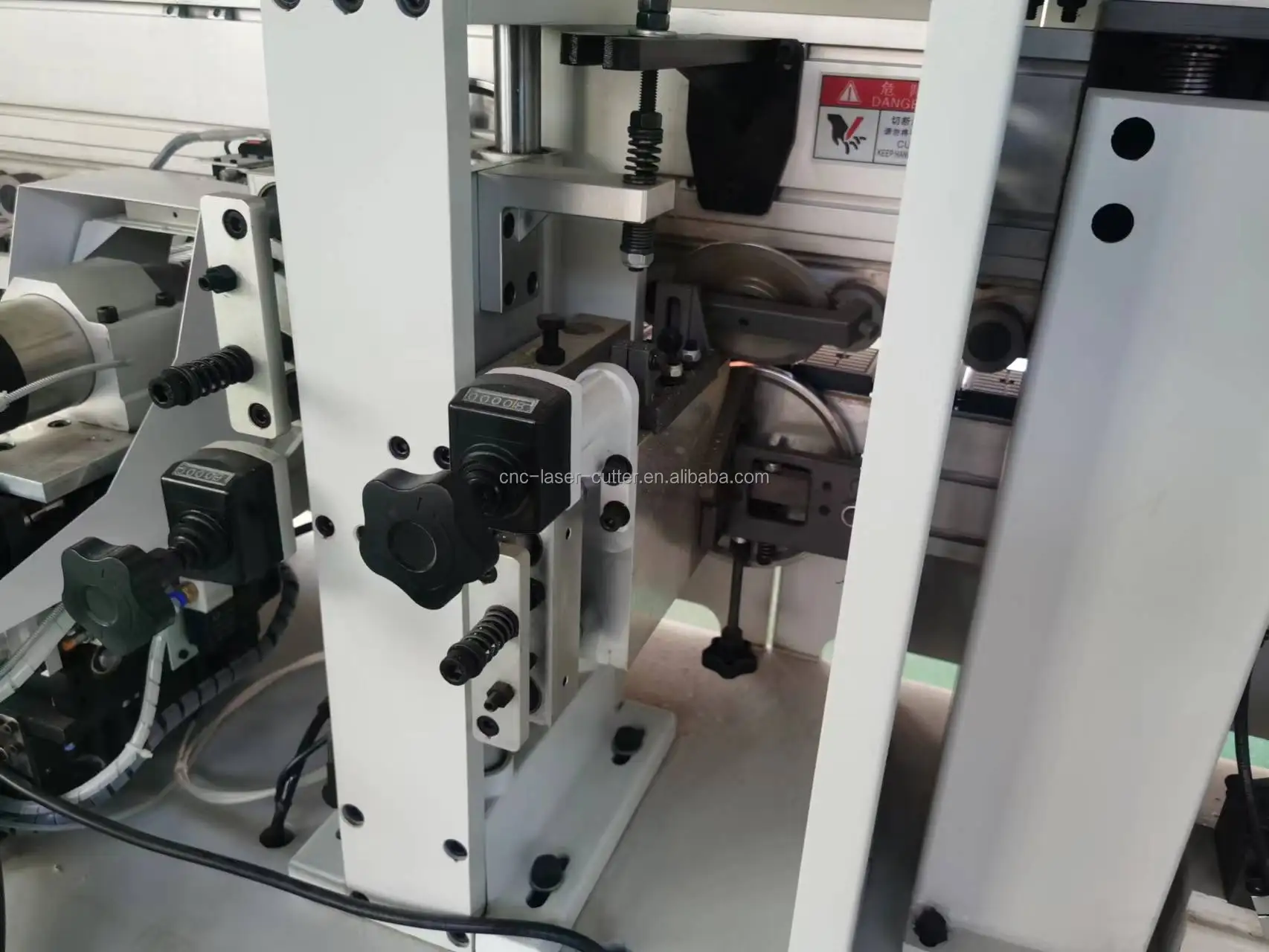

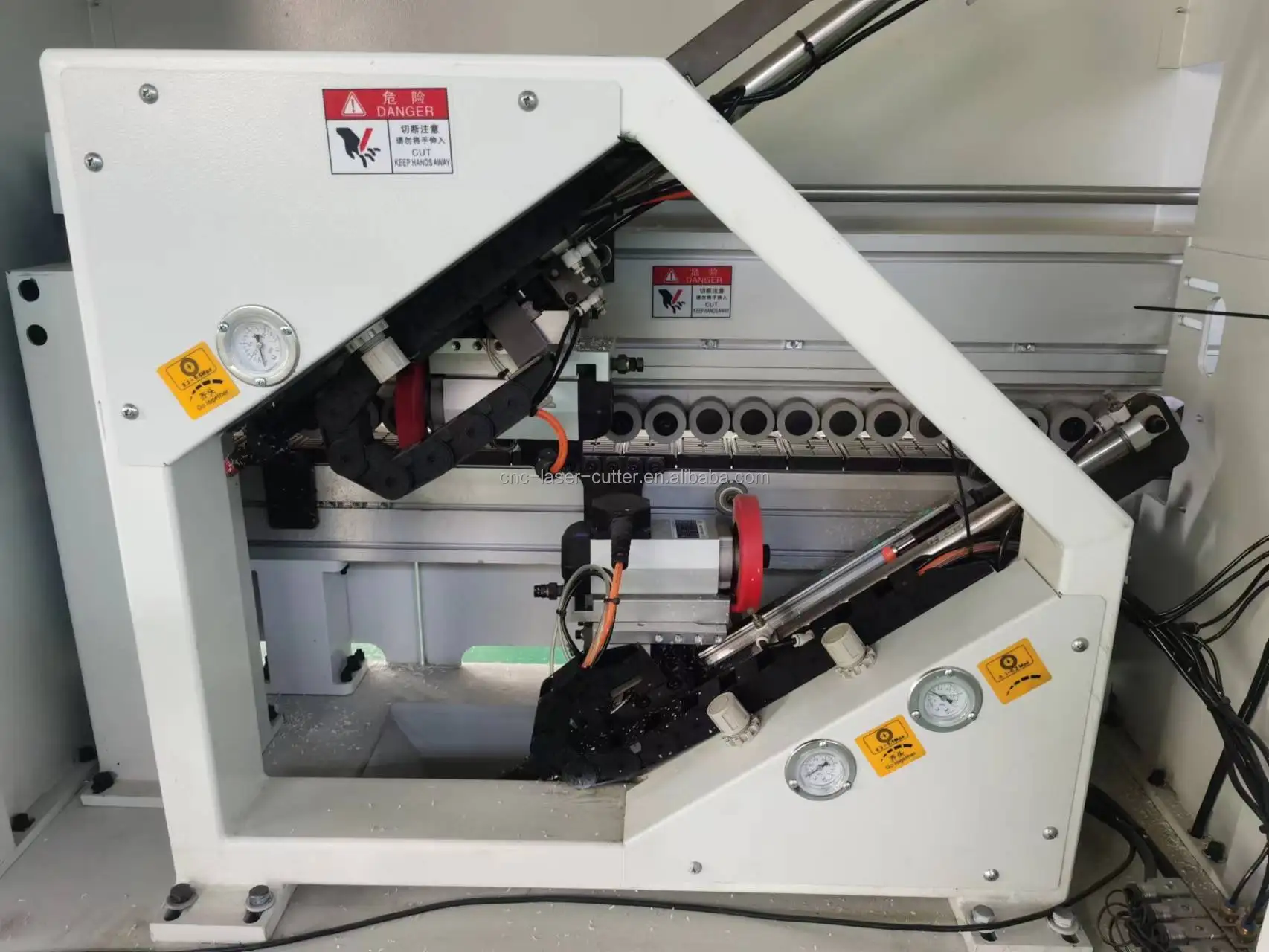

Double rail front and end cutting:
Double guide rail front and rear flush mechanism 45 degree precision linear guide structure Four sets
0.37KW high-speed motor.
0.37KW high-speed motor.

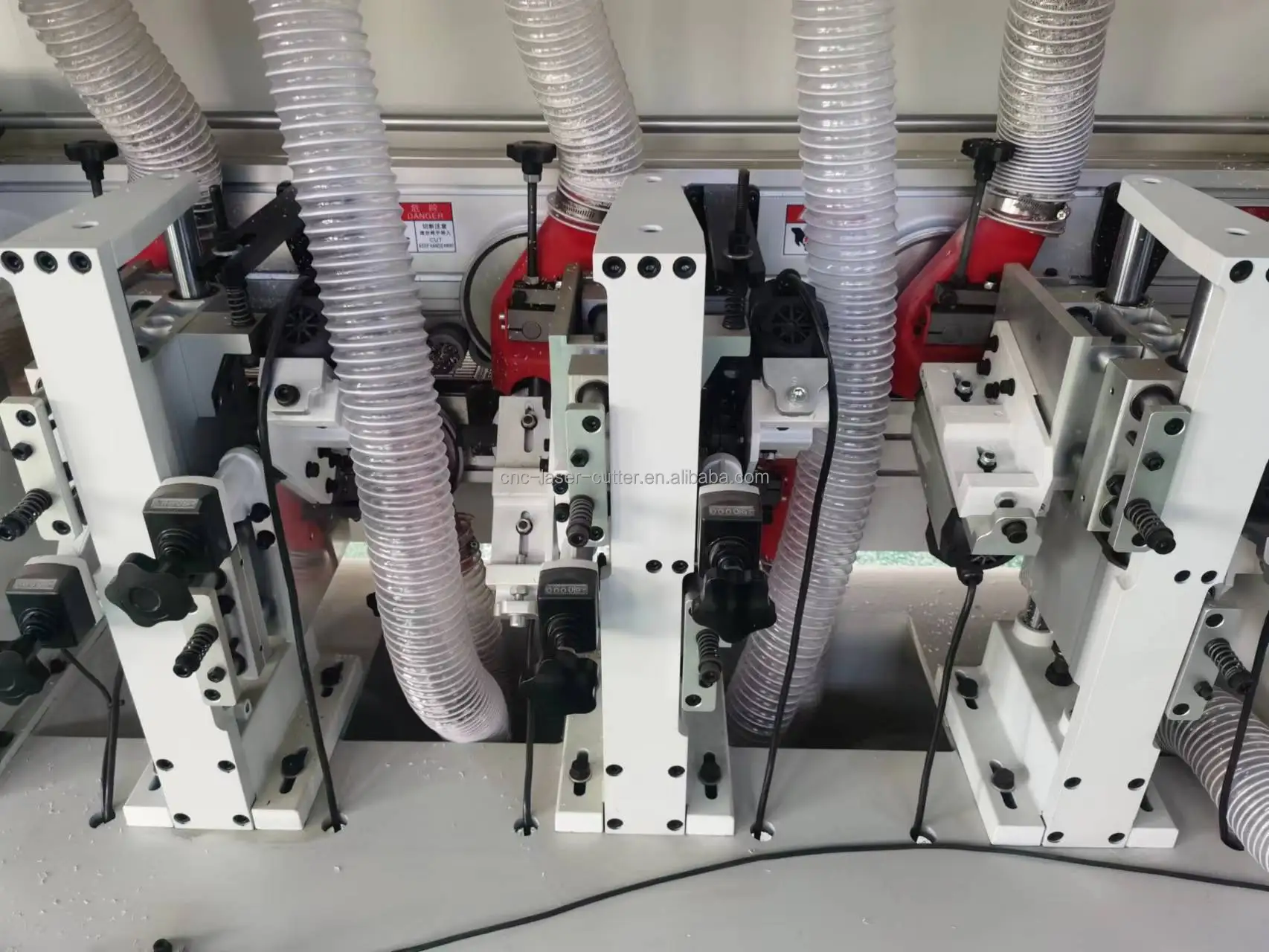

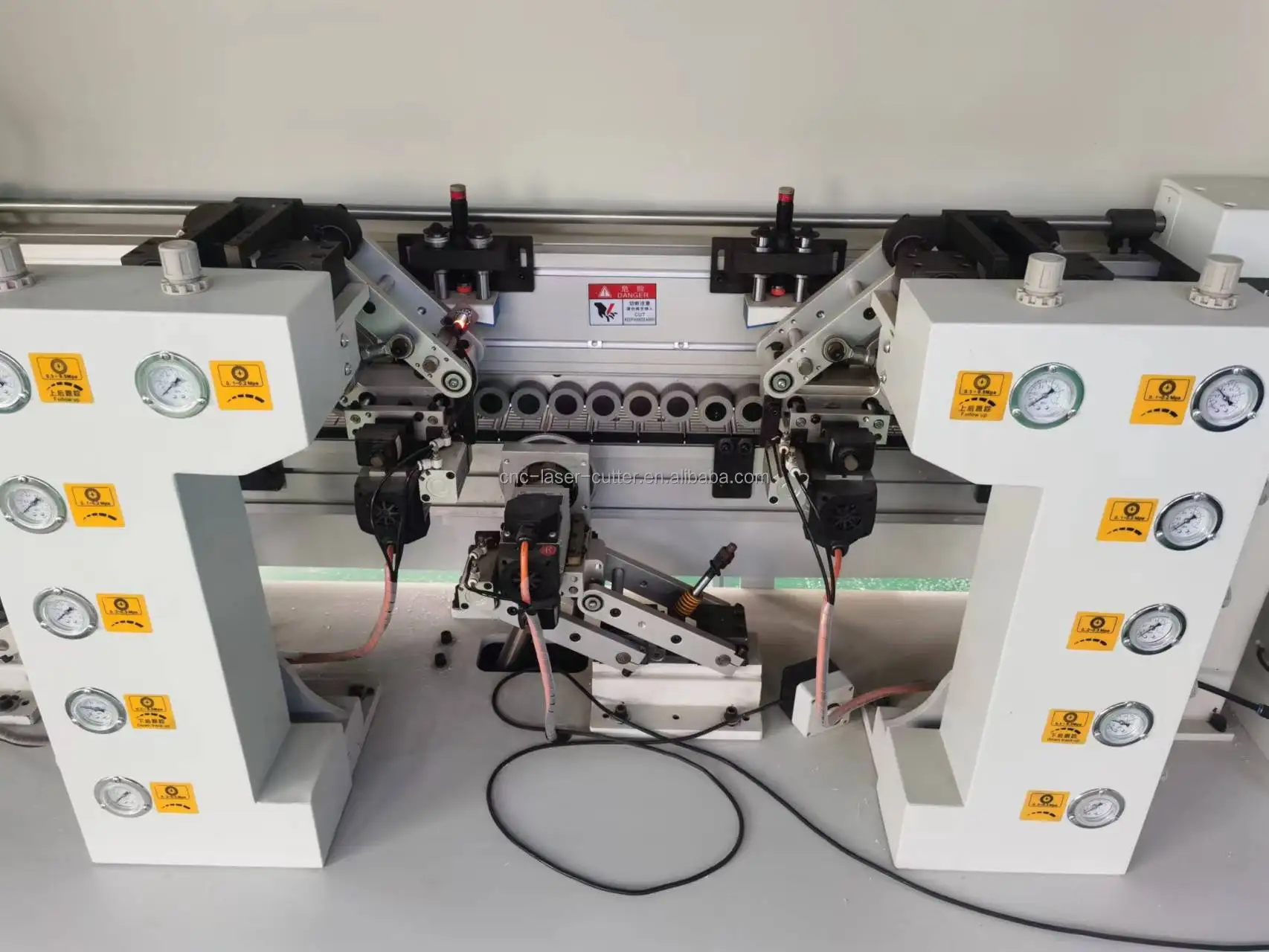

tracking and trimming:
Four-motor profiling, tracking and trimming ·High-precision profiling, to ensure the perfect tactile and visual effects of work piece processing ·Can achieve 4 different profiling effects, as well as diamond corners

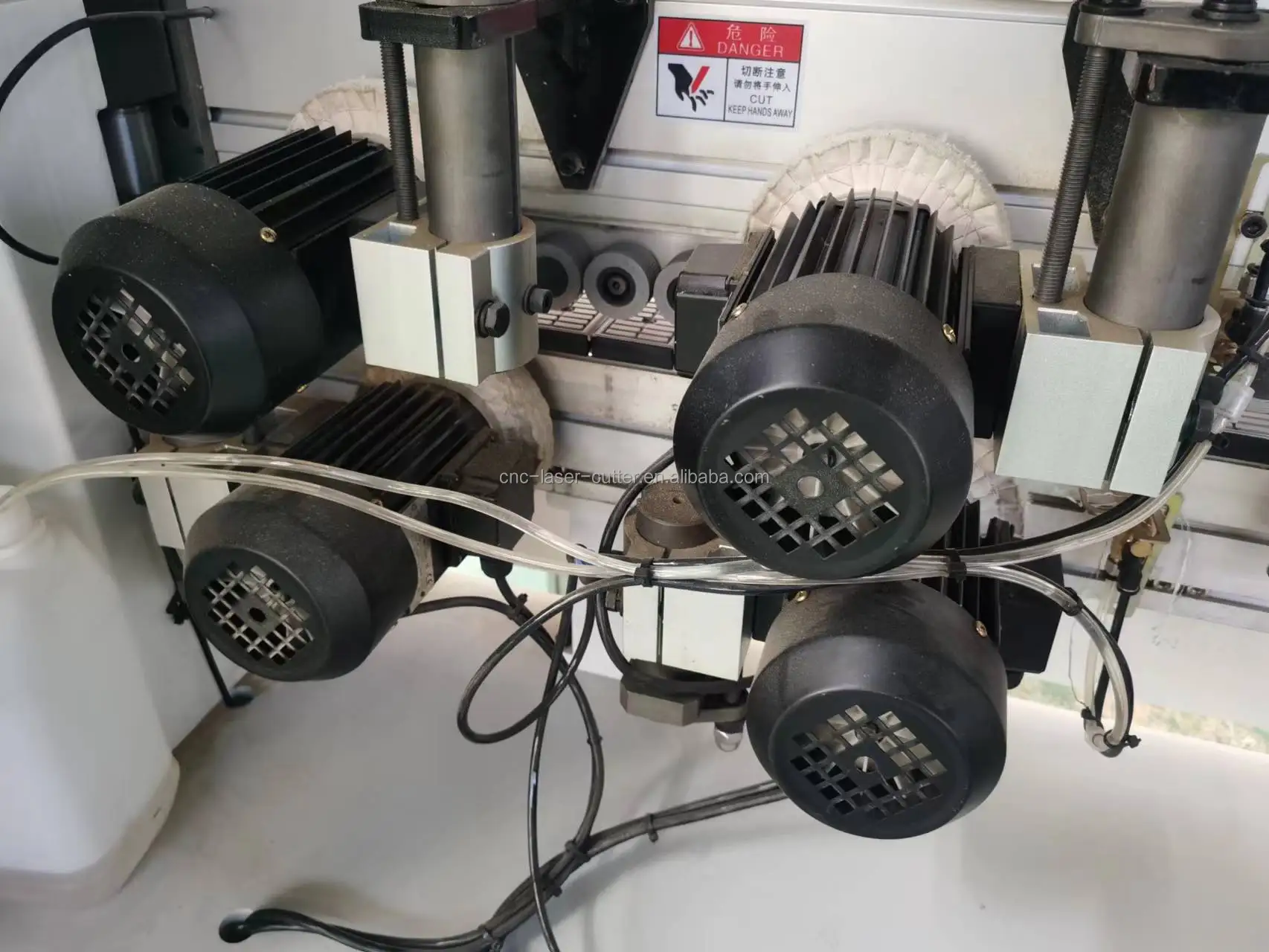

Double polishing：
Double polishing ·Longitudinal polishing treatment with thousands of workpieces ·Workpiece edges are cleaned and excess glue is removed.
Electric lifting and lowering：
·Electric lifting and lowering of the pressure beam, high degree of automation.
Cleaning mechanism：
Spray a layer of cleaner to the surface of the wooden board, throw the remaining glue through polishing to make the surface of the wooden board smoother.
Double glue pot:
Double gluing mechanism of the upper and lower glue pots ·2 kinds of glues of different shades and colors can be quickly switched and used without stopping ·Each glue pot can hold 3 kg of glue. Quick sol device, no need to change glue during processing
Rough And Fine Trimming：
Trimming mechanism Rough trim 1/fine trim 1 (two R1 knives) and fine trim 2 (two
Use R2 knife) with trimming to increase the use time of the knife, and equipped with an independent dust cover.
Use R2 knife) with trimming to increase the use time of the knife, and equipped with an independent dust cover.
Edge scraping:
Edge scraping mechanism ·Remove knife marks left by trimming and finish R rounded corners ·Electro-pneumatically controlled blowing

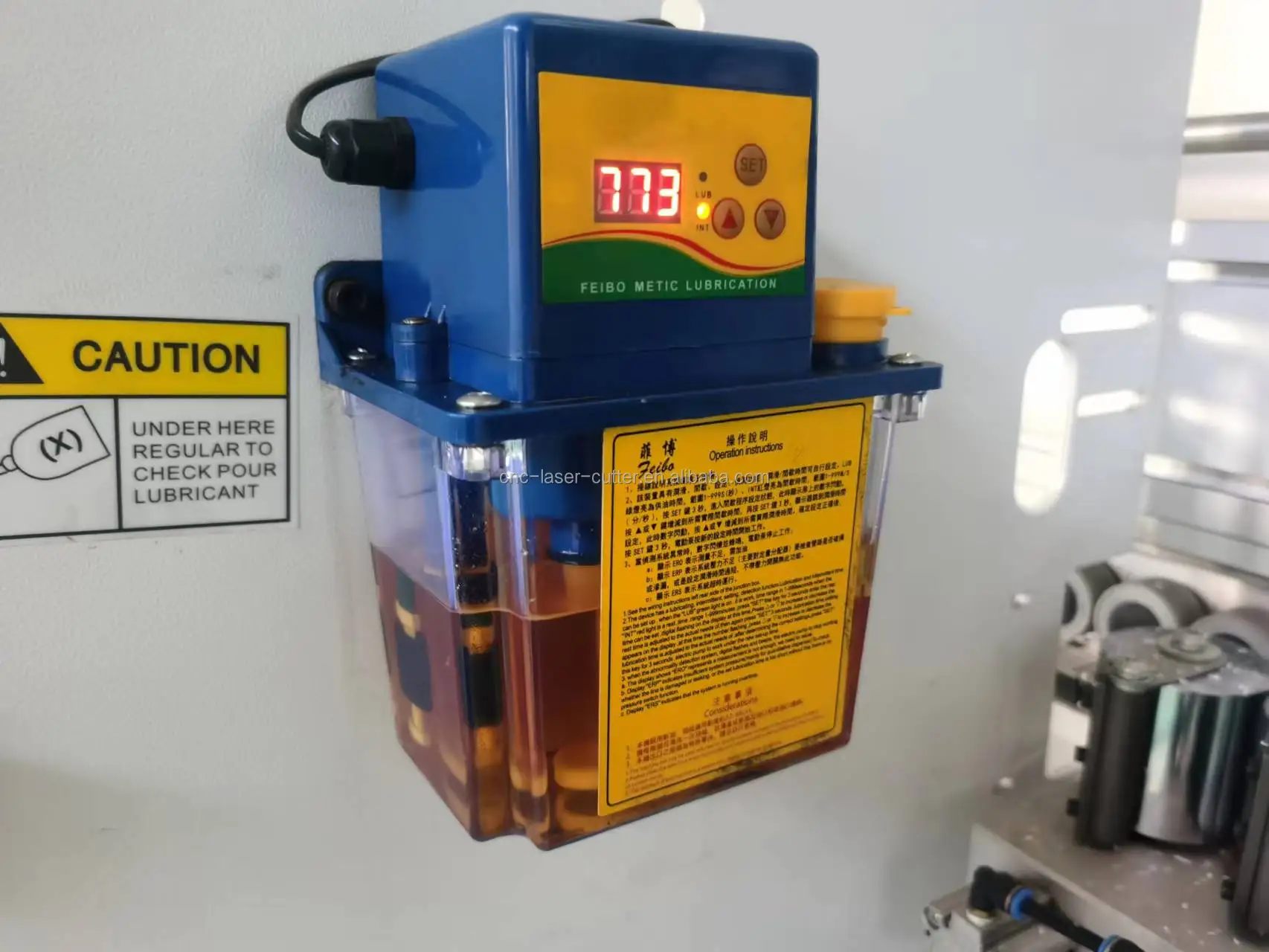

Automatic lubricating system:
Automatic lubricating system of the head. ·The head mechanism is automatically lubricated with oil from time to time to ensure smooth operation and improve the service life of the parts.

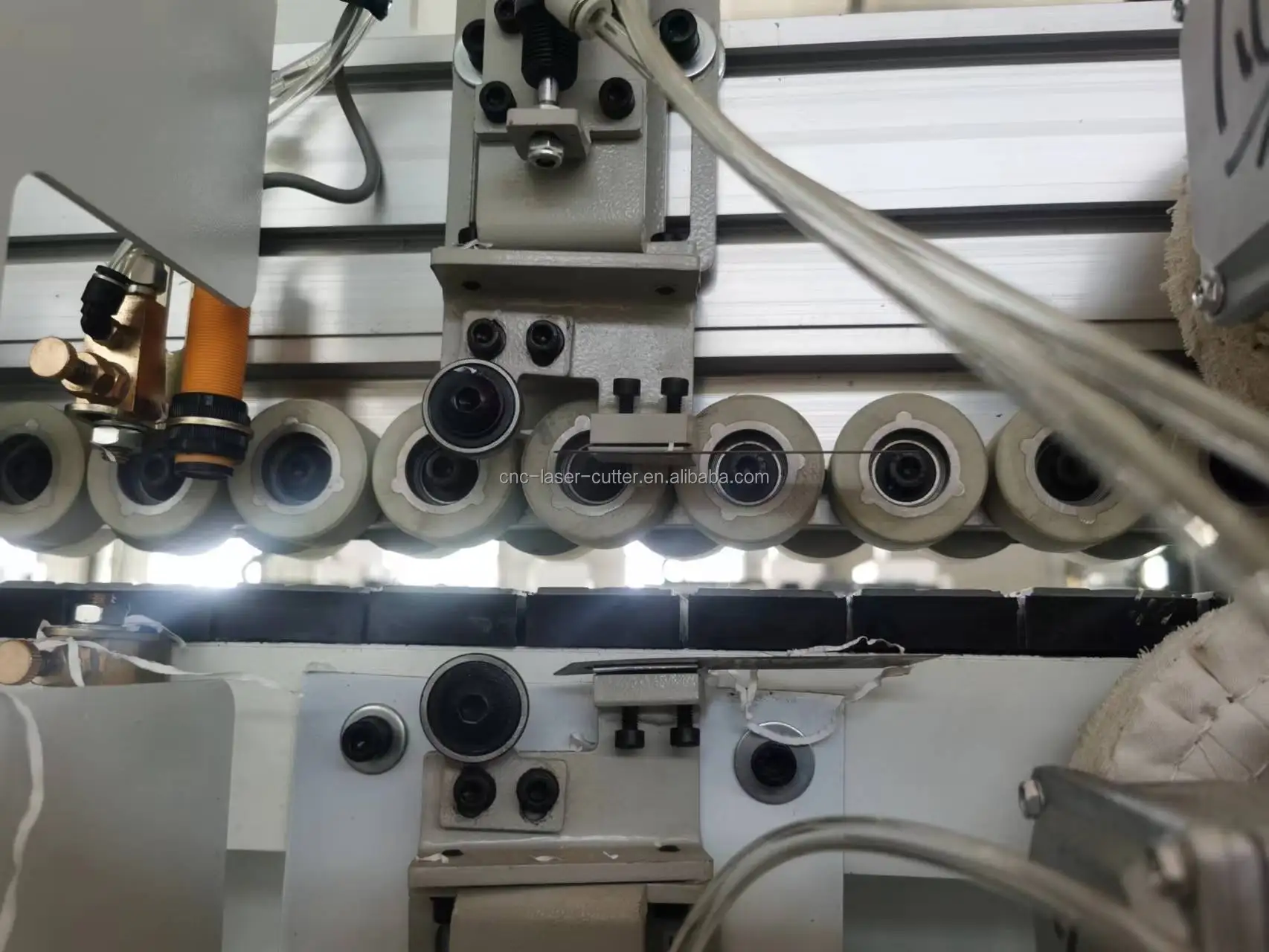

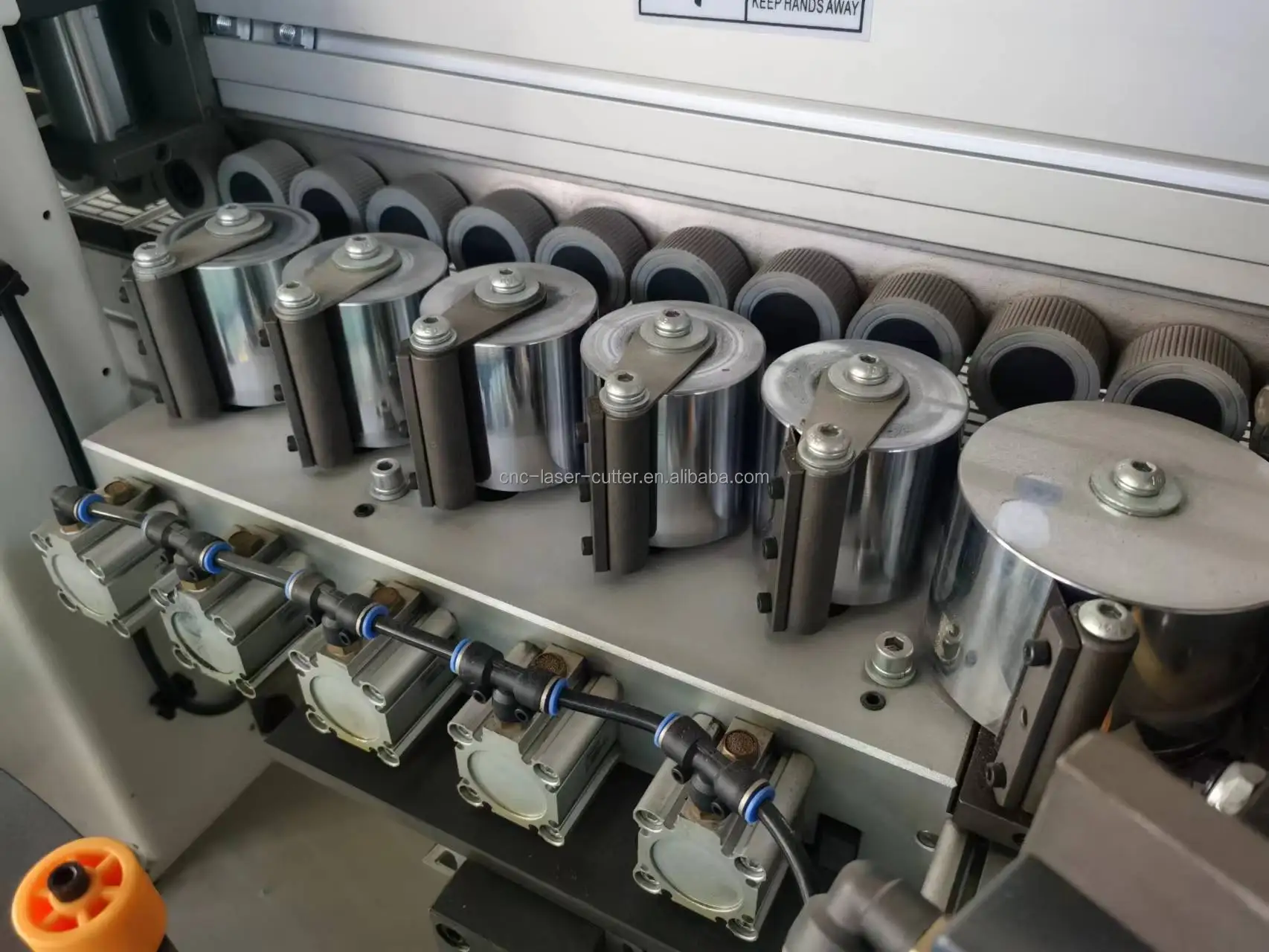

Press and paste:
Pressing mechanism ·Double six-wheel pressing, which makes the rubber and the board more firm after the glue is applied.
automatic tracking CNC side hole drilling:
Optional automatic tracking CNC side hole drilling, after the edge banding is completed, the side holes are automatically processed on the edge banding machine, which greatly improves the efficiency of panel furniture.
Product Specification:
Model | JD-668JS | ||||
Packaging Size (X Y Z) mm | 1244mm*980mm*1660mm | ||||
Maximum speed(m/min) | 28(m/min) | ||||
Minimum processing size(L*W) | 1200mm*950mm | ||||
Sheet thickness | 10-60mm | ||||
Sheet width | 95mm | ||||
Sheet length | 120mm | ||||
Edge band thickness | 0.4-3mm | ||||
Feed rate | 15-23m/min | ||||
Equipped with dust collector wind speed | 30m/s | ||||
Gross Weight (kg) | 4200KGS | ||||
Total Power (kW) | 35.49KW | ||||
Working Pressure (MPa) | 0.6(MPa) | ||||

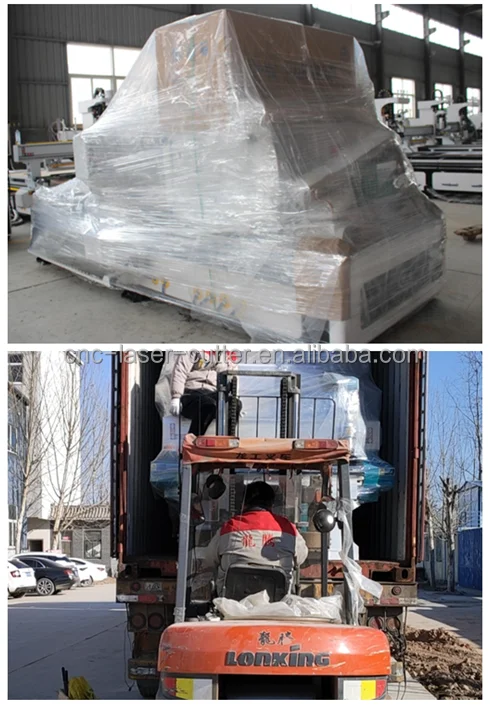

Packaging&Shipping:

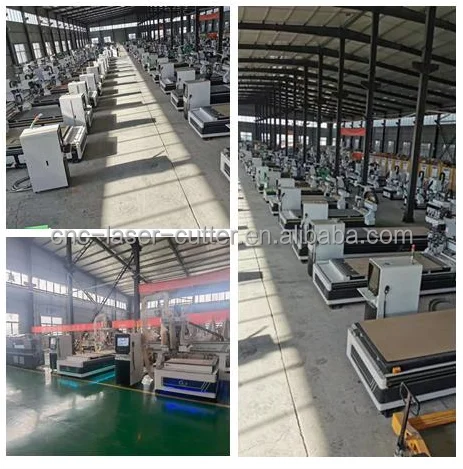

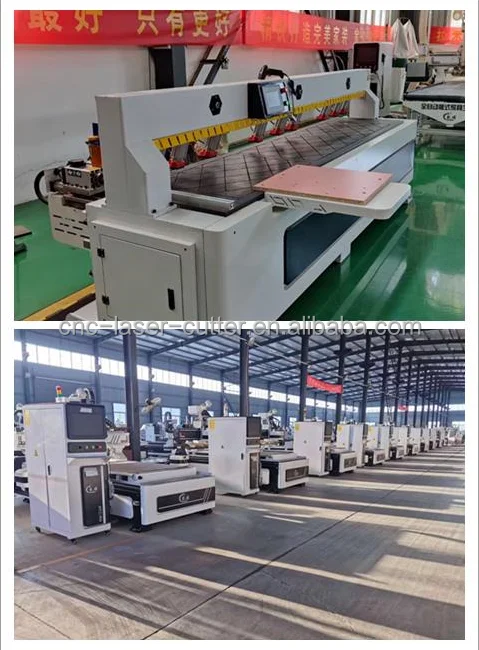

Company Profile:
JINAN JCUT CNC EQUIPMENT CO., LTD is located in Jinan, Shandong, China. Our company was established in 2008.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.Our machine mainly
used for advertising, woodworking, steel cutting and stone processing industries.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30
countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East
and so on.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.Our machine mainly
used for advertising, woodworking, steel cutting and stone processing industries.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30
countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East
and so on.
Certifications:
FAQ:
Q1. Are you a trading company or a factory?
A1. We are a factory with more than 50,000 square meters of workshops, located 1,000 meters north of the intersection of Wenliang Road and Airport Road, Licheng District, Jinan City, Shandong Province
A1. We are a factory with more than 50,000 square meters of workshops, located 1,000 meters north of the intersection of Wenliang Road and Airport Road, Licheng District, Jinan City, Shandong Province
Q2. What machine can you supply?
A2. Our main machines are wood engraving cnc router machine,wood cutting machine,wood furniture making auto tool change wood cnc router machine,Edge banding cnc router machine, Side Hole drilling cnc router, Sanding Machine,Laminating machine, Push table saw and wood furniture making production liner etc.widely used for wood door cabinet and panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, Alibaba Pay or by negotiation
Q4. What is the delivery time?
A4. About 15-25 days, Some standard machines have stocks.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes, you will receive support from experienced pre-sales engineers, including not only the operation and use of the machine, but also the understanding of the system, software, and the machine layout of the factory.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
