1300mm Width Plywood Cutting Machine Plank Multi Blade Rip Saw Line
- Category: >>>
- Seller: Zhengzhou,Chryso,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
1300mm Width Plywood Cutting Machine Plank Multi Blade Rip Saw Line
Product Description

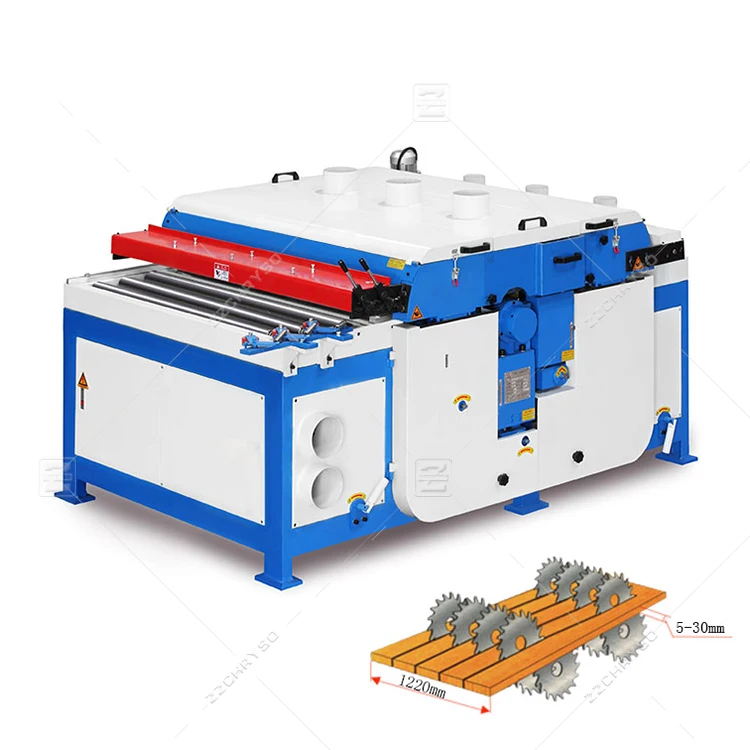

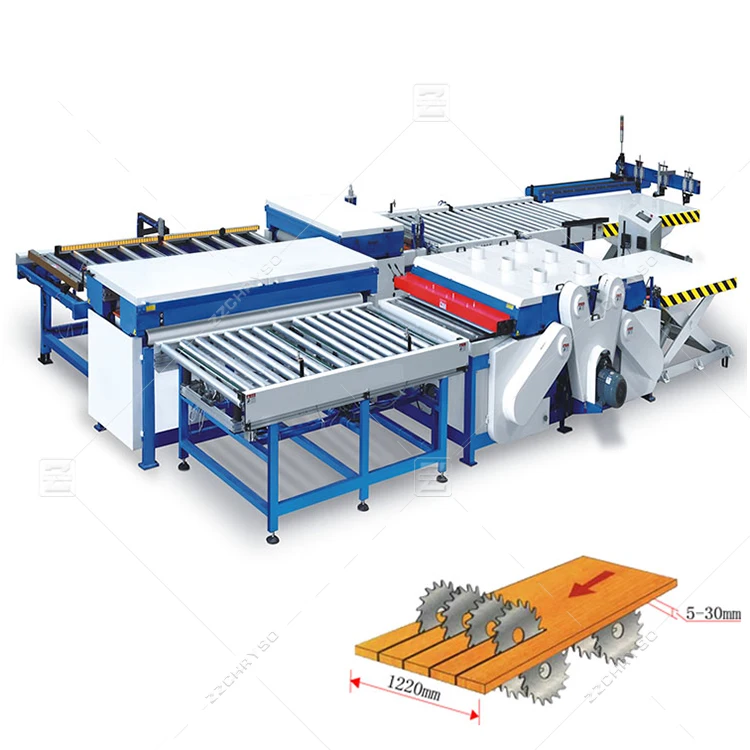

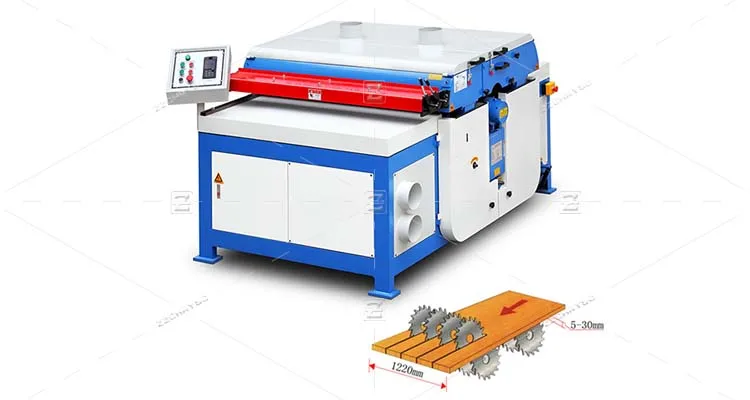

Description of Wood Planks Multi Rip Saw
The tracked wood plate multi rip saw is mature product in our factory all the year round. It adopts track-type transmission feeding, with high performance and high precision.Solid wood composite flooring, laminate flooring, panel furniture, wooden packaging box, laminated timber, photo frame is sawn into multiple pieces of equal or different specifications in one time.
The precision saw shaft ensures the smoothness and straightness of the cutting plate, and can be customized according to the customer's individual requirements.
Feature
Feature of High precision heavy duty wood planks cutting multi rip saw machinery price
1.The spindle is bottom saw with lifting and a fully enclosed protective cover;the digital or manual lifting of spindle and upper pressing frame can be optioned. Strenghthened type spindle and axle bed.Anti-bouncing protector for plate is available.
2.It is provided with a spindle at lower part and a fully enclosed protective cover,and realizes manual lifting of spindle and pressing frame. Rebounce protector for plates is available.
3. Dust protection and environmental protection device.
4.Using high quality alloy wear-resistant saw blade.
5.Spindle #45 steel ,NSK high speed wear-resistant bearing,copper motor.
6.Intelligent integrated power distribution system, easy to operate, safe and stable.
5.Spindle #45 steel ,NSK high speed wear-resistant bearing,copper motor.
6.Intelligent integrated power distribution system, easy to operate, safe and stable.
Specification
Technical Parameter | CRS1300-XT2 | CRS1300-XT4 | CRS1300-XD4 | CRS1300-X3 | CRS-1300-XD3 |
Spindle speed(r/min) | 2600 | 2600 | 2600 | 2600 | 2600 |
Saw blade diameter(mm) | 205 | 205 | 270 | 205 | 255 |
Spindle of diameter(mm) | 74 | 74 | 90 | 74 | 85 |
Width of processed material(mm) | Max1220,Min200 | Max1220,Min200 | Max1220,Min200 | Max1220,Min200 | Max1220,Min200 |
Thickness of processed material(mm) | Max30,Min5 | Max30,Min5 | Max60,Min5 | Max30,Min5 | Max45,Min5 |
Power of spindle motor(kw) | 2*11 | 3*11 | 22 | 11 | 18.5 |
Feeding speed(m/min) | 0-17 | 0-17 | 0-12 | 0-12 | 0-12 |
PS: the machine can accept customized service, please kindly contact us know more details.
Details Images

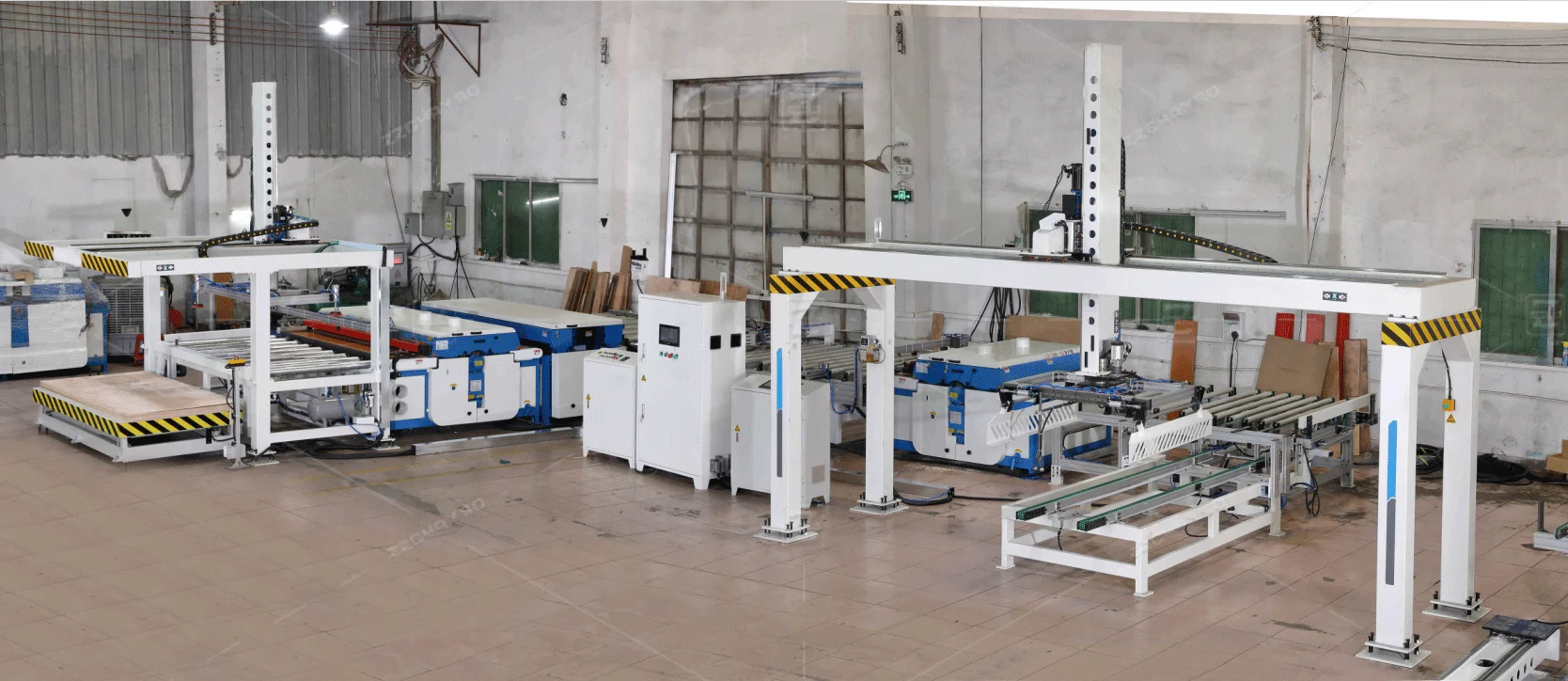

Production Line
