H801RC slave 8*1024 pixel 8ports online artnet multi pixel rgb rgbw led controller
- Category: Dimmers >>>
- Seller: Shenzhen,Asda,Photoelectric,Lighting,Co.,Ltd.
Share on:
Product Overview
Description
H801RC slave 8*1024 pixel 8ports online artnet multi pixel rgb rgbw led controller
Product Description
Artnet dmx spi online rgb rgbw pixel led controller:
Product Name: H801Rc Artnet Controller
Max control: 8 output, each channel 1024 pixels
Drive Pixels Number: 8192pixels max
Working power: 1.5W
Material: Matel +Plastic
Working Signal port: Support allocating address for DMX512 chips
Drive Pixels Number: 8192pixels max
Working power: 1.5W
Material: Matel +Plastic
Working Signal port: Support allocating address for DMX512 chips
Features:
1) support DMX512(1990) international standard protocol.
2) More control functions: it can control various drive IC types
3) High speed photoelectric to ensure control system safety.
4) Control system realize more than 256 scales per color
5) Project setting agility: realize adjust the brightness and speed separately.
6) Customized software: easy to setup the lighting project system.
7) System failure self-repair function.
online play H801RC Slave controller with sd card 8*1024 pixel led pixel spi rgb rgbw dmx controller
H801RC 8outputs dmx spi led controller:
1. Supported Driver Chips:
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.
Offline auxiliary software is “LED Build Software”; online auxiliary software is “LED Studio Software”.
2.Performance:
(1). Eight output ports drive maximum 8192 pixels.

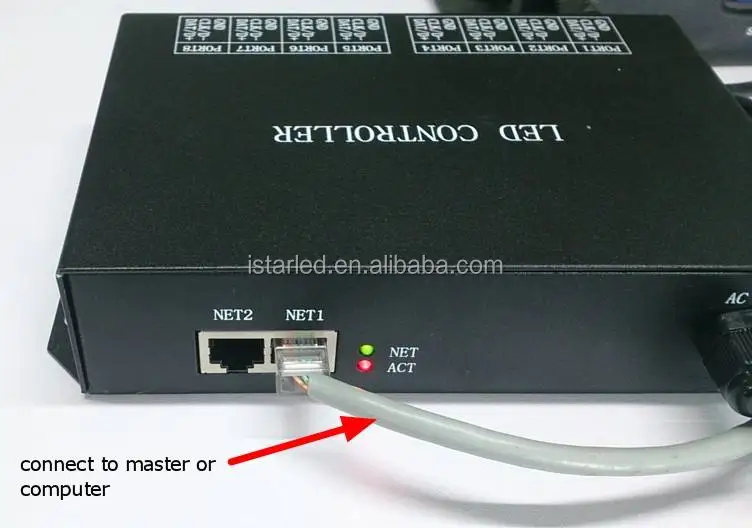

(2). H801RC can be connected to computer, master controller, switch or photoelectric converter.
(3). High synchronization performance, the transmission of adjacent slave controller delays within 400 ns.
(4). Good control effect and grayscale level is under precisely control.
(5). Far transmission distance. Signal transmitted based on standard Ethernet protocol and the nominal transmission distance is 100 meters.
(6). The clock scanning frequency is adjustable within 100K to 50M Hz.
3.Connection Diagram:
