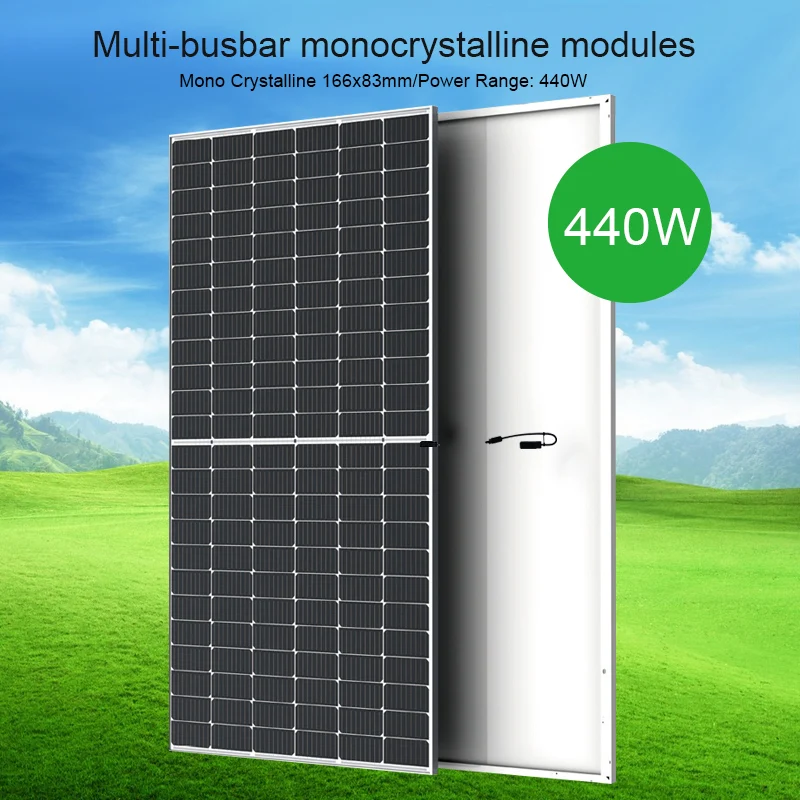

Solar Power Panel 24V Bluesun 440 Watt 550W Pv Jinko Solar Panels Panneaux Solaires 144Cells Mono Perc Photovoltaic Module 700W
Cell Type | Mono Crystalline 166x83mm |
Numbers of cells | 144 |
Dimension | 2094X1038X35mm |
Weight | 23.5kg |
Front Glass | 3.2 mm low iron tempered glass |
Frame | Anodized aluminum |
Junction Box | IP 67, with 3 bypass diodes |
Connector | MC4 compatible |
Output Cables | TUV, Potrait:350mm/Landscape:900mm, 4.0mm2 |
Maximum Power at STC(Pmax) (W) | 440 |
Short Circuit Crrent(ls) (A) | 11.46 |
pen Circuit Voltage(Voc) (M) | 48.9 |
Maximum Power Current(mppl (A) | 10.71 |
Maximum Power Voltage(Vmool (V) | 41.09 |
Module Efficiency | 20.24% |
Power Tolerance | 0/+3% |
Nominal Operating Cell Temperature(NOCT) | 44"C |
Temperature Cofficient of Pmax(V) | -0.343%/K |
