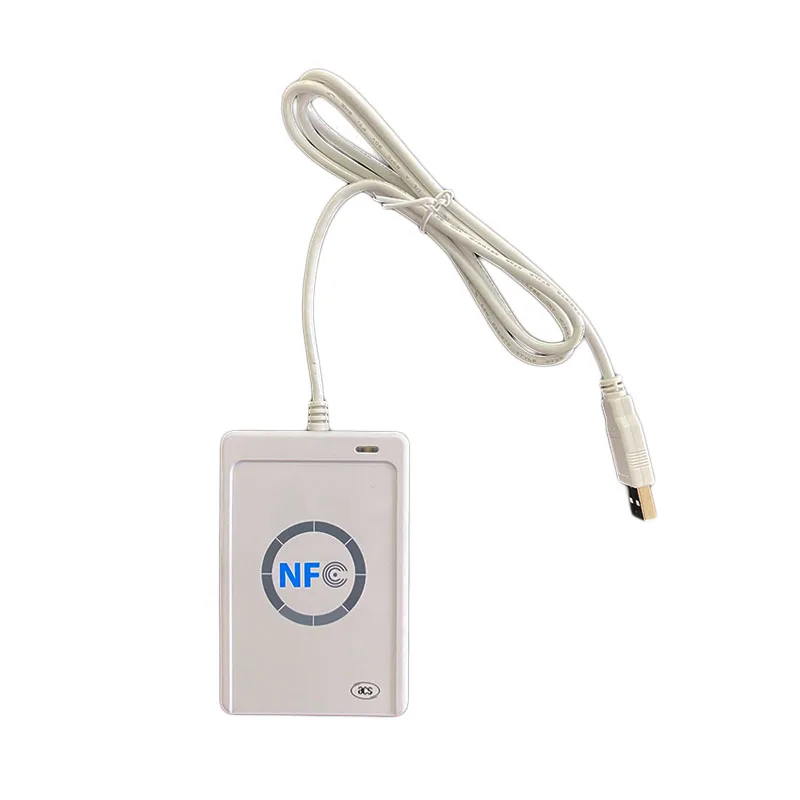

USB Portable ACR122U Reader RFID Card Scanner NFC Reader Writer

Share on:

Price in USD:


Product Overview


                                             Portable Cheap Price NFC USB Dongle Reader




The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only  ire and ISO 14443 A and B cards, but also all four types of NFC tags.

ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.

Product Description


1.0 Introduction


In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

The ACR122U NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

The ACR122U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR122U with ease. For more information, click here to download the brochure of this special accessory.

The ACR122U USB NFC Reader has been counterfeited by certain law-breaking parties. We issue the following declaration to inform our stakeholders of how we are addressing this issue, and to inform customers on how they can protect themselves against illegal products. For more information, please click here.



 1.0. Features :

  • USB 2.0 Full Speed Interface

  • CCID Compliance

  • Smart Card Reader:

    • Read/write speed up to 424 kbps

    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

    • Supports ISO 14443 Type A and B cards,  are, FeliC@, and all 4 types of NFC (ISO/IEC 18092) tags

    • Built-in anti-collision feature (only 1 tag is accessed at any time)

  • Application Programming Interface:

    • Supports PC/SC

    • Supports CT-API (through wrapper on top of PC/SC)

  • Peripherals:

    • User-controllable bi-color LED

    • User-controllable buzzer

  • Supports Android™ OS 3.1 and above


1.0.  Typical Applications


Mobile Banking & Payment


Access Control

Network Security

Public Key Infrastructure

e-Purse & Loyalty


Technical Specification


98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)


70 g

Compliance / Certifications

  • ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI,  RoHS 2,  USB Full Speed, Microsoft® WHQL


  • USB Full Speed

Operating Distance

Up to 50 mm (depends on the tag type)

Supply Voltage

Regulated 5V DC

Supply Current

200mA (operating); 50mA (standby); 100mA (normal)

Operating Temperature

0-60 °C

Operating Frequency

13.56 MHz

Smart Card Interface Support

  • ISO14443 Type A & B

  •  are

  • FeliC@

  • 4 types of NFC (ISO/IEC18092) tags

Operating System Support


  • Win CE 5.0 and 6.0

  • Linux®

  • Mac OS®

  • Android™ 3.1 and above·
