Product Overview
Description

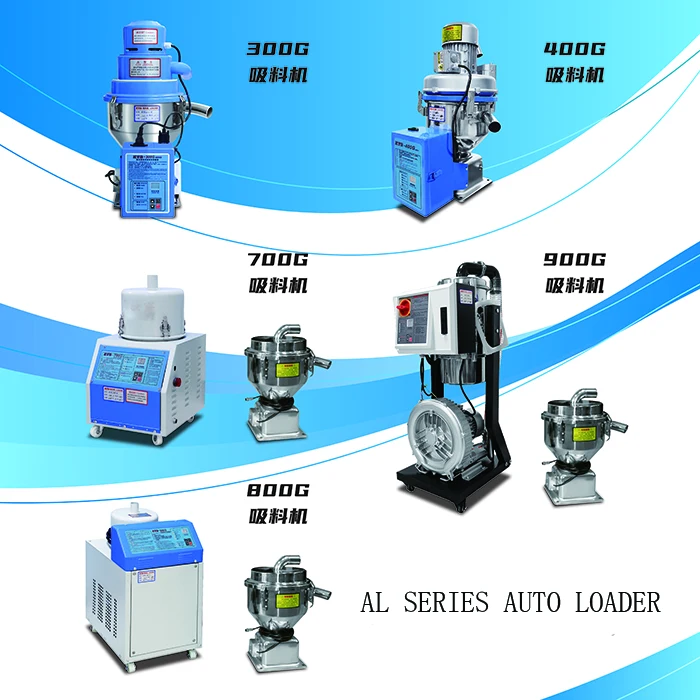

AL Series Vacuum Loader
AL series full automatic vacuum loader is widely used in the raw material conveying of rubber and plastic processing industry.There are two kind of structure - integral type and separation type with totally 5 models: AL-300G, AL-400G, AL-700G, AL-800G and AL-900G
Application
Plastic
Grain
Beans
Specification
Model | Motor | Conveying ability | Lift | Hopper volume | Diameter of pipe | Size | Weight | ||||
Type | Specification | Machine | Package | ||||||||
AL-300G | Carbon brush | 220v/3Φ 1.5hp | 350kg/h | 4m | 7.5L | Φ38 | 206*330*545 | 370*360*640 | 14kg | ||
AL-400G | Induction | 380v/3Φ 1hp | 400kg/h | 4m | 7.5L | Φ38 | 206*330*670 | 430*440*730 | 26kg | ||
AL-700G | Carbon brush | 220v/3Φ 1.5hp | 400kg/h | 4m | 7.5L | Φ38 | 365*295*540 | 700*340*580 | 25kg | ||
AL-800G1 | Induction | 380v/3Φ 1hp | 400kg/h | 4m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 47kg | ||
AL-800G2 | Induction | 380v/3Φ 1.5hp | 550kg/h | 4m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 51kg | ||
AL-800G3 | Induction | 380v/3Φ 2hp | 700kg/h | 5m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 53kg | ||
AL-900G1 | Induction | 380v/3Φ 1hp | 400kg/h | 4m | 7.5L | Φ38 | 420*470*1080 | 480*520*1200 | 55kg | ||
AL-900G2 | Induction | 380v/3Φ 1hp | 550kg/h | 4m | 7.5L | Φ38 | 420*470*1080 | 420*470*1080 | 60kg | ||
AL-900G3 | Induction | 380v/3Φ 1hp | 700kg/h | 5m | 7.5L | Φ38 | 420*470*1080 | 480*520*1200 | 65kg | ||

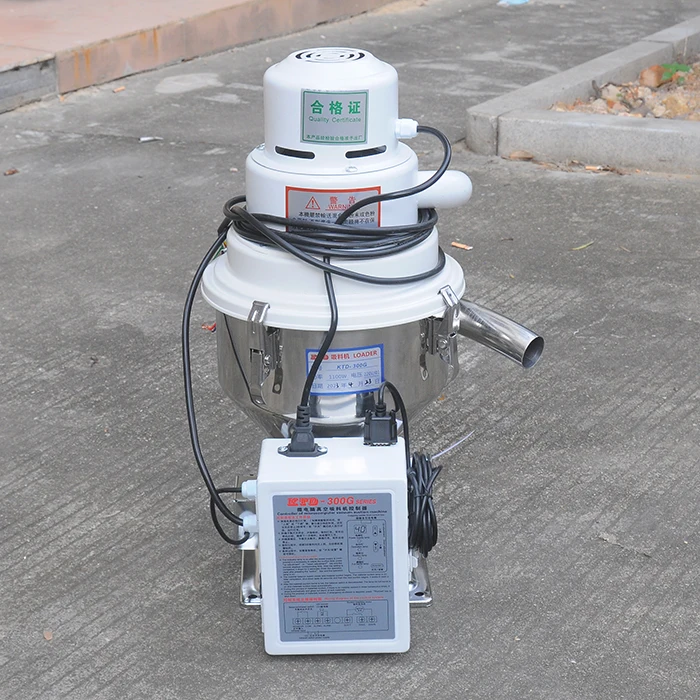

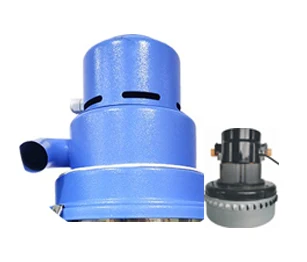

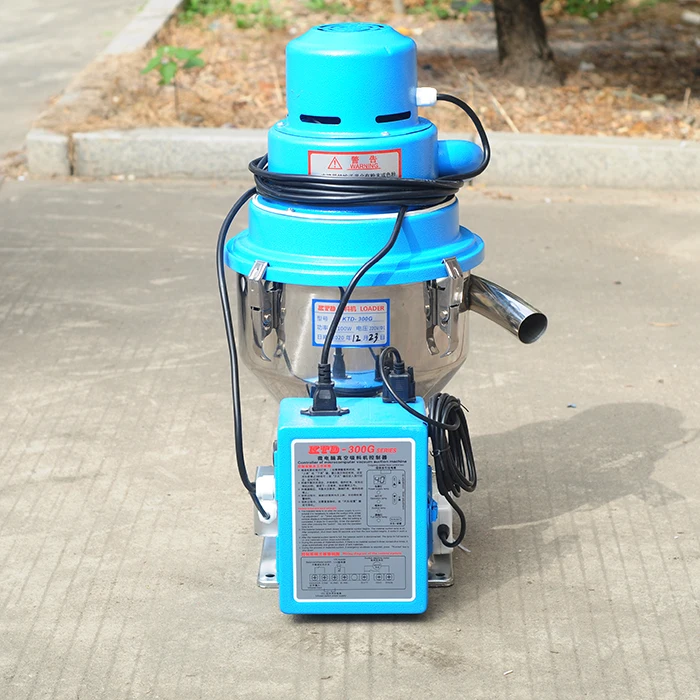

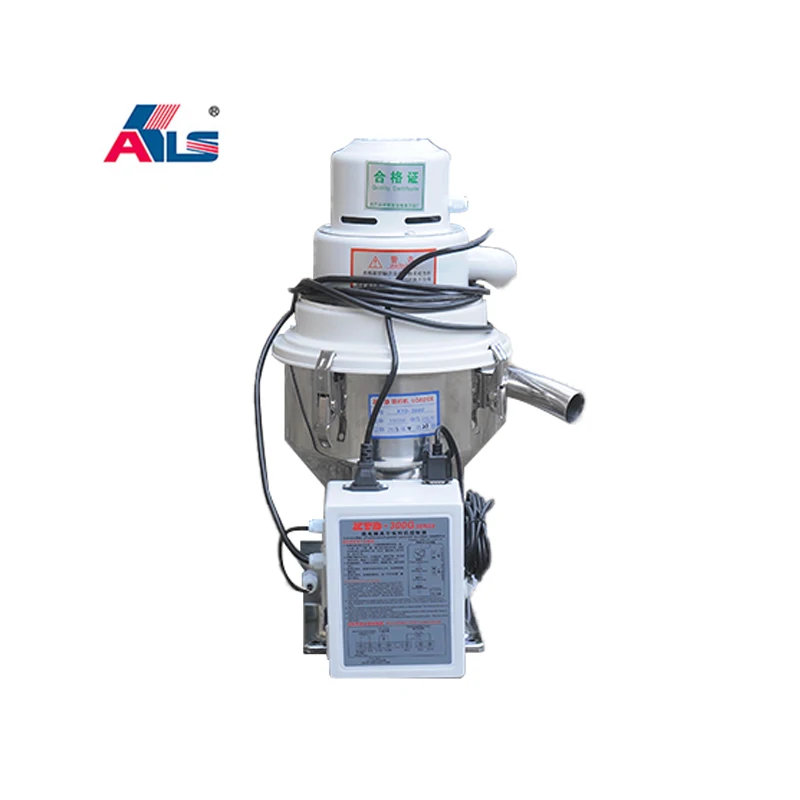

AL-300G adopts high speed motor, low noise as well as strong suction, suitable for conveying original material.

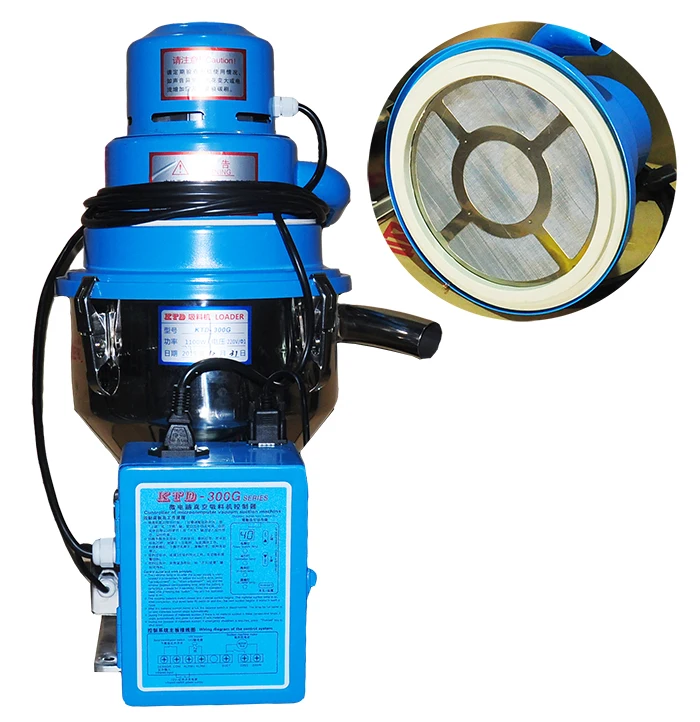

The dense cloth filter screen can filter even though tiny dust and powder, provide the motor constant and long protection

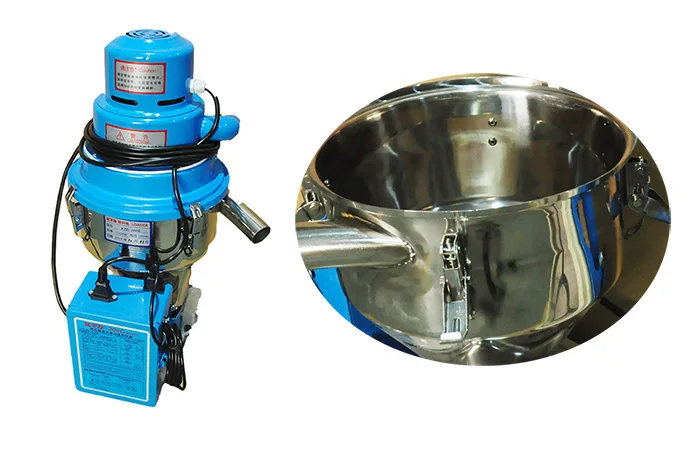

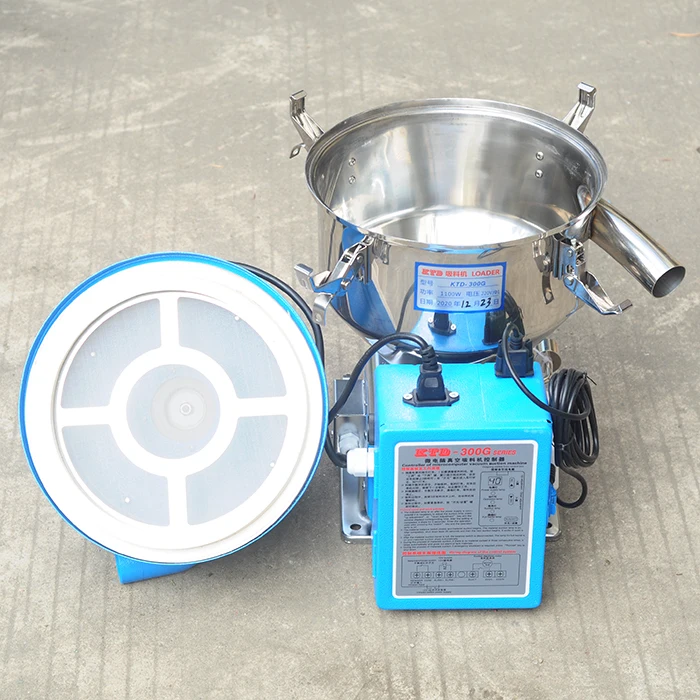

Open structure, easy to operate and clean, stainless steel material prevent from get rusty, last lifetime.
Cabinet
Packing list | ||
Loader | 1 pc | |
Hose 3m | 1pc | |
SS pipe 60cm | 1pc | |
Dust bag | 1pc | |
Gasket | 1pc | |
Manual | 1pc | |
Dimension | 38*37*64cm | |
Weight | 14kg | |
