KUS 52mm NEMA2000 series liquid level meter NMGR-WS Holding tank level meter J1939

Share on:

Price in USD:
Price:$28.00 - $53.00

Quantity:


Product Overview

Description



Product Description








  • NMEA2000 is a communication protocol on data exchange among electric control units in navigation application,presented by America National Marine Electronics Association(NMEA) based on communication protocol J1939. Standard data exchange way better achieves data sharing,allowing user a easier, more reliable application.



Application








  • NMEA 2000 gauges are composed of sea V series faceplate and Sea Q series main body except the tacho meter.



Key Features








  • NMEA2000 is based on CAN-BUS develop standard, which can achieve data exchange and sharing among different equipments.

  • Low cost,easy to installation,simple and easy to use.

  • Support PNP(plug and play),so the marine electric equipments installation,maintenance and exchange are very easy.



Specifications








  • Fixing dimension: 52mm

  • Protection grade is IP67, meaning it can perform up to 1 meter under water.

  • The lenses are doubled layered reinforced anti-fogging glass.

  • 316 Stainless steel bezel with curved glass;

  • With 1 meter cable and 5-pin female waterproof connector

  • Bezels with black, white stainless steel can be customize

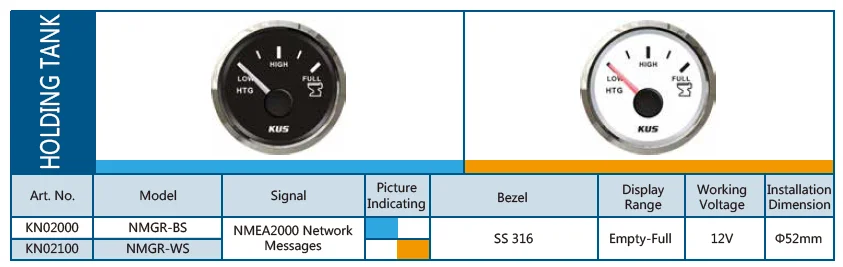

Product Photo










Installation Information





1. Cut a φ52mm hole on panel, and insure there is enough space behind panel for gauge and
harnesses mounting.
2. Assemble the seal ring into gauge, then mount the gauge into the hole on panel, screw
tightly with fastening ring.
3. Connect the cables referring to wires diagram( standard NMEA2000 cable)


.JPG





Warranty



  • Within one year after shipment except for improper installation and operation by the user
