CS32 excellect used petrol station fuel dispenser, best selling retail fuel dispenser

Product Overview

Description

CS32 excellect used petrol station fuel dispenser, best selling retail fuel dispenser

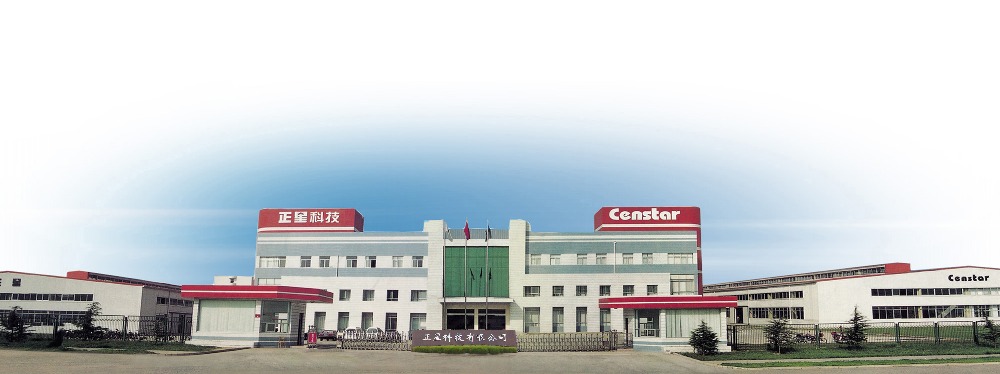

Censtar, top brand in Chinese greaser industry, pioneered a number of "FIRSTS" in Chinese fuel-servicing equipment industry, won 14 national patents in the R&D of fuel-servicing equipments.

 Features:

 1) A traditional series,Censtar first generation products.

 2) With traditional hydraulic to keep the simple maintenance

 3) The electronic parts are as same as the other models to realize the same function for the service stations

 1) CS32C1110A: 1 hose, 1 product, 1 display for each side

 2) CS32C2220A: 2 hoses, 2 products, 2 displays for each side

 3) CS32C2120A: 2 hoses, 1 product, 2 displays for each side

 1) No remote dispenser applicable

 2) Hard piston flow meter;independent air separator and by-pass valve;

 3) Automatic shut off nozzle available

 4) Interface for local management system, space for local card payment

      system available

 5) Net size: 1030 x 500 x 2,100mm

Accuracy: ±0.25%

Flow rate range:5 to 50 liter per minute

Noise: <80dB(A)

Intake vacuum:>54kPa

Display:Sales 0.00 to 9999999

Volume 0.00 to 99999.99

Unit price:0.00 to 99999

Decimal point position can be chosen

Electrical totalizer:0.00 to 999999.99

Mechanical totalizer:0.00 to 999999.99

Power supply AC380V or AC220V with a changing range form -15% to +10%

Motors out power: 750 W for vane pump an 1000W for gear pump

Working environmental temperature:-40 to +55

Relative humidity:30% to 90%

Horizontal distance from tank to dispenser < 15m

Vertical distance form tank to dispenser pump <4m

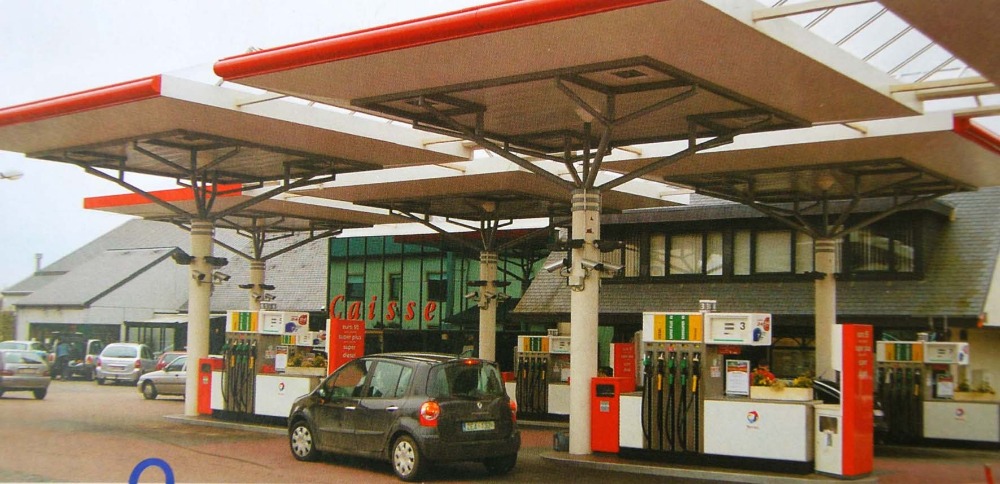

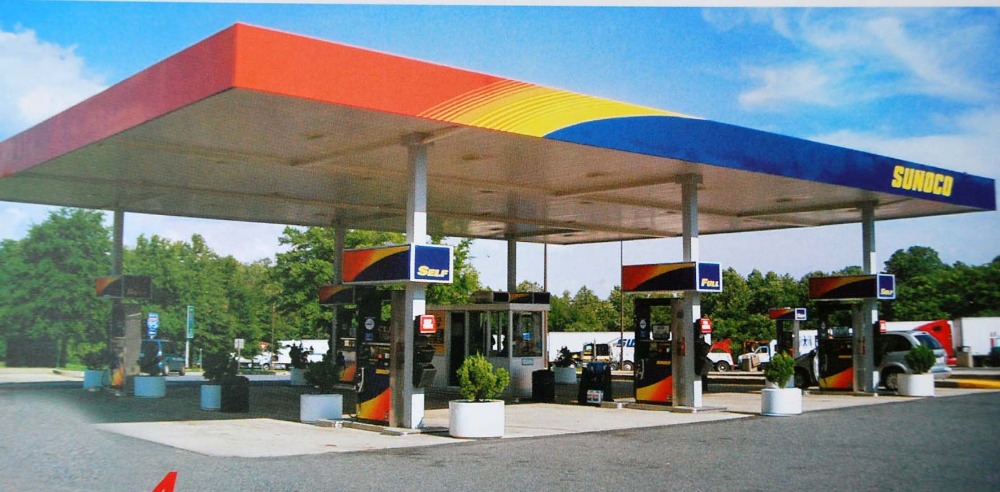

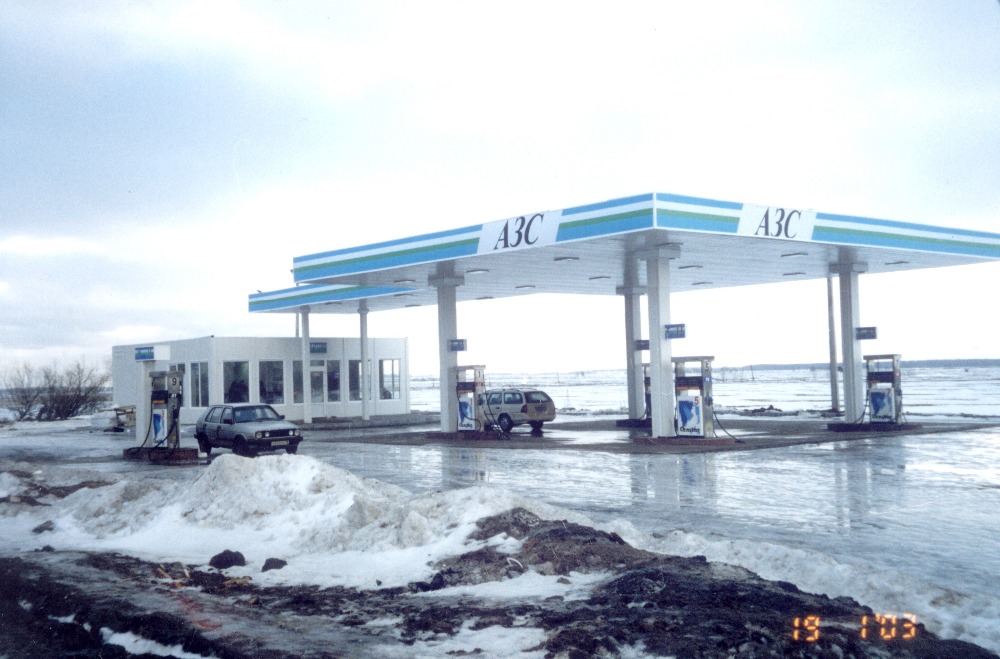

Censtar fuel dispensers, stand from the coldest Siberia to the hottest and wettest Sri Lanka.
