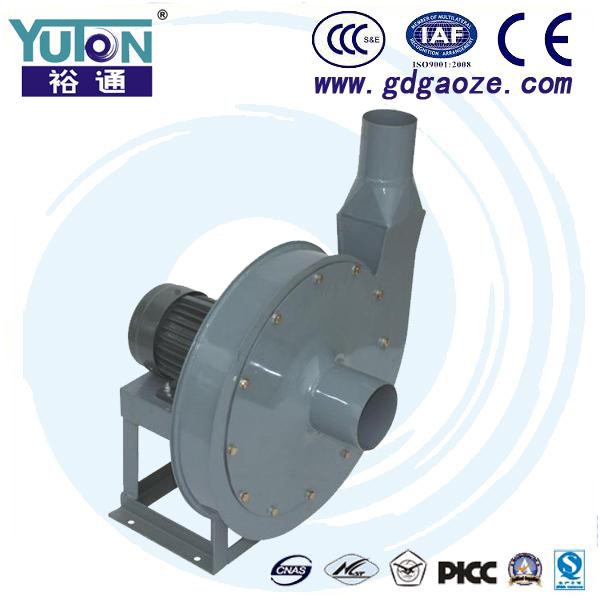

Yuton 9-36 series High Suction Negative Pressure vacuum Blower Fan Application for Conveying granule Materials

High Pressure Centrifugal Fans have strong scroll housing and impellers,they are made of cast iron with thick powder coating ,which are designed to overcome high resistance to air flow. They are suitable for high pressure forced ventilation in smelting industry,glass industry,ceramic industry,wireless and electroplating industry. And widely used in materials transportation in processing industries,such as food,feed. The transmitted medium is air, and other non-hypergolic air,non-explosive air with no harm to people . The air flow shall not contain any adhesive material,such as dust and grain,the particulates are no bigger than 150 mg/m³. The temperature of the air flow is no higher than 80 centigrade.

Fan Type

High Pressure Centrifugal Fan

Certificate

CE,CCC

Electricity Current Type

AC(Alternating Current)

Voltage

220V/380V

Frequency

50HZ

Power

2.2KW-55KW

Speed

2900 RPM

Air Volume

680 m³/h up to 13525 m³/h

Static Pressure

2865 Pa up to 2630 Pa

Motor

Standard Motor

Smelting Industry

Glass Industry

Ceramic Industry

Wireless Industry

Electroplating Industrial

Storage Battery Industry

Material Conveying

Fan Housing

Cast Iron Material with strong Powder coating

Impeller

Cast Iron Material

Inlet and Outlet  Ducts

Chimney shape

Motor

Standard Motor, cast Iron with pure copper

Motor Support

Cast Iron

Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts.

When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c

 If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away.

By our efforts,our company Gaoze was selected as the member of China Gneral Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institure China"; Furthermore,a number of products are applied patents,which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification,most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System.

Periodically clean the inner dust, dirt and other impurities

Periodlically check the fan to avoid rusting

Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation.

Model No.

Power

(KW)

Revolution

(rpm)

Air Volume

(m³/h)

Pressure

(pa)

3.5A

2.2

2900

680-987

2865-2630

3

2900

950-1355

3325-2750

4A

4

2900

2198-3215

3852-3470

5.5

2900

2500-3750

3852-3470

4.5A

7.5

2900

3130-3680

4910-4776

11

2900

3963-4920

4661-4256

5A

15

2900

         4293-6349

6035-5381

18.5

2900

5120-6762

5180-4985

5.6A

22

2900

7766-9500

7218-6527

30

2900

7766-9500

7218-6527

6.3A

45

2900

8588-11883

9698-8915

55

2900

12699-13525

8636-8310

Bubble Packing: a cost-effective packing method, it is suggested if order is one full container

Carton Packing: standard packing ,it is suggested if order is one full container

Wooden pallet: more safe packing, it is suggested if order is not enough one full container
